TRAILER CONCRETE BATCHING PLANT “VOYAGER 90-M”

Trailer concrete batching plant VOYAGER 90M. Travel and produces 90m3 per hour. Product of new thinking is the pioneer, reliable, integrates and trailer concrete batching plant.

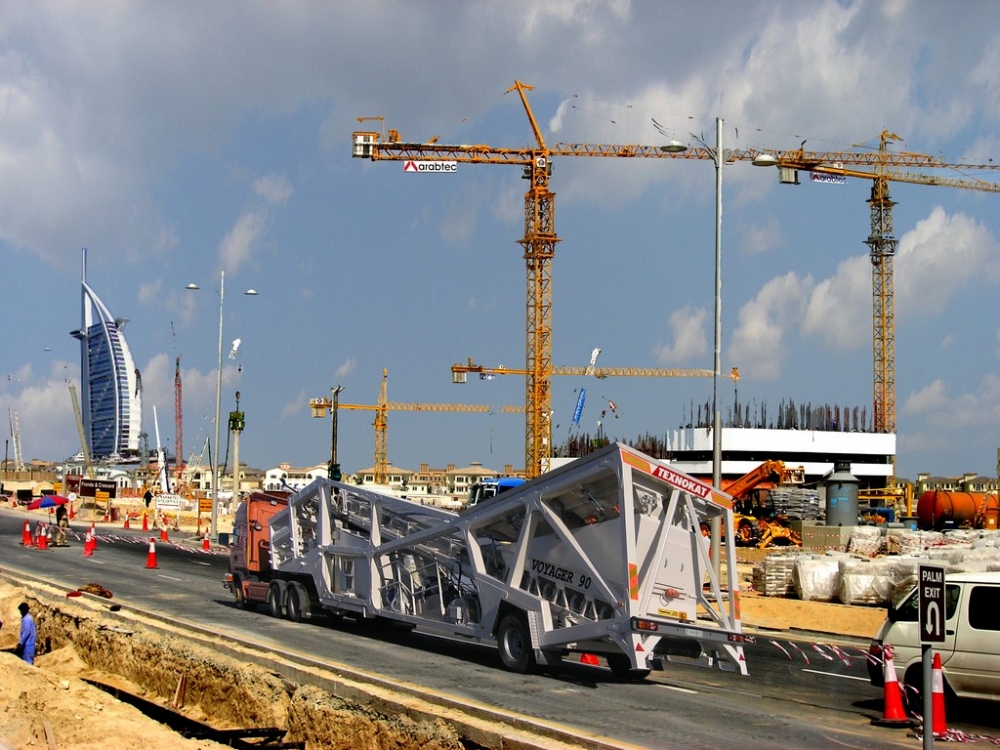

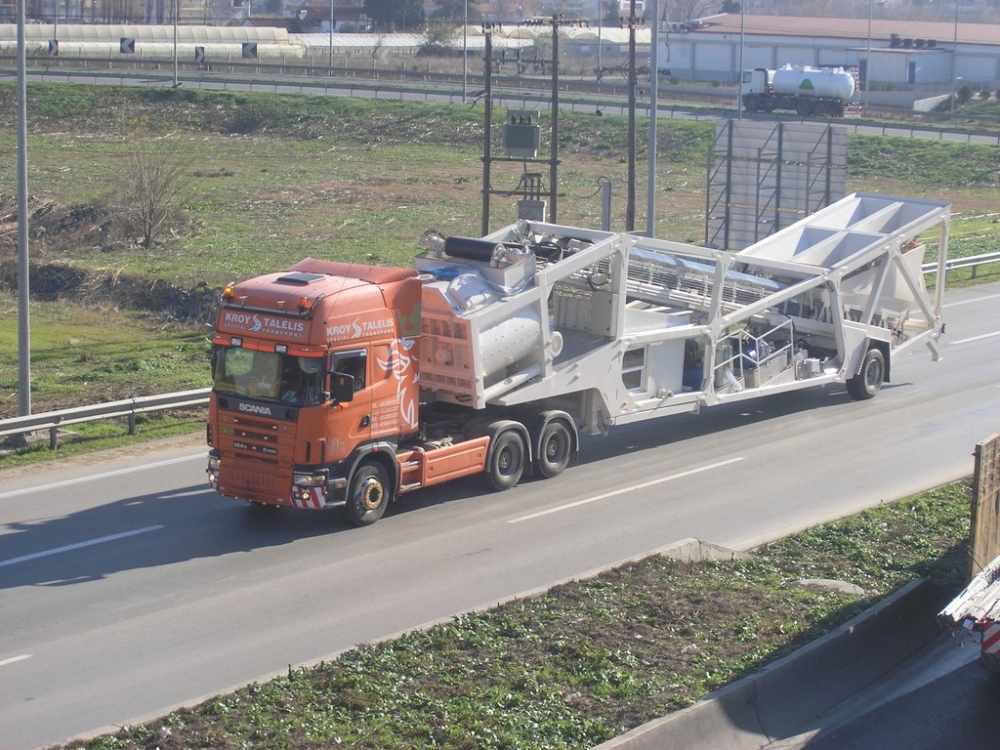

The concrete batching plant “VOYAGER 90-M” is a trailer vehicle, which has   90m3/h production capacity and can be set up in full operation within a few hours.

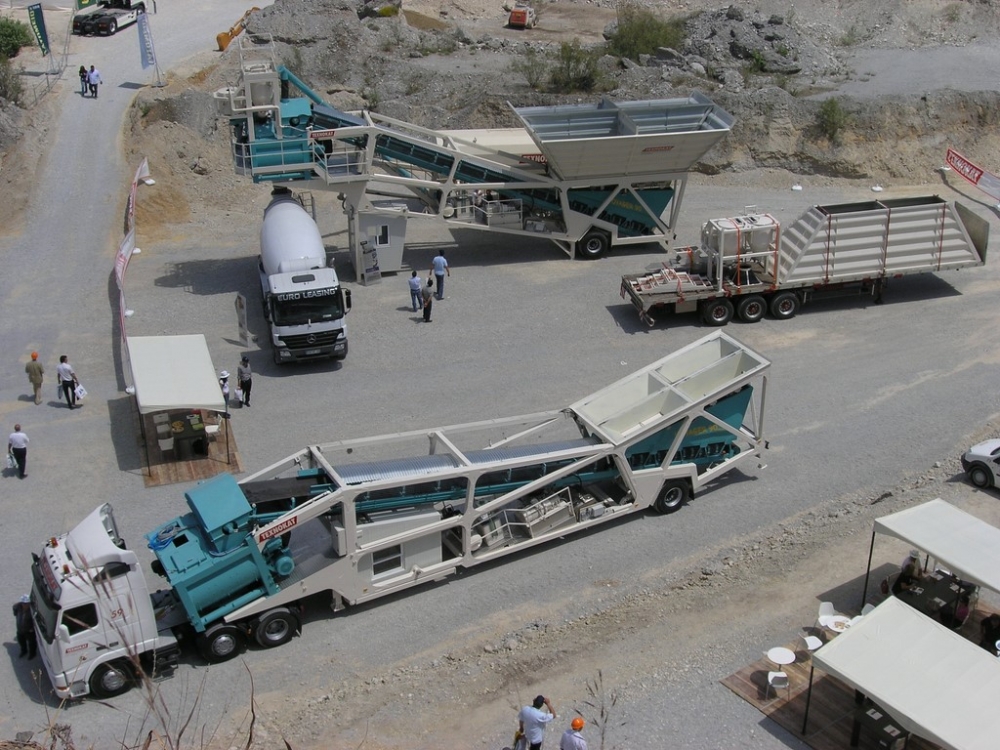

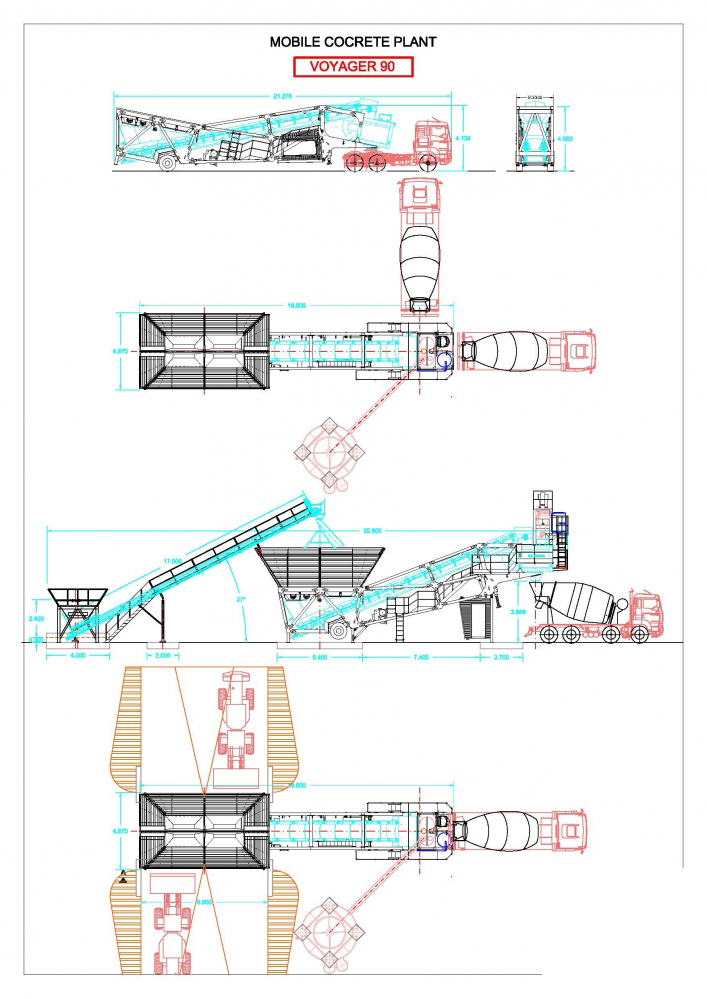

“VOYAGER 90-M” incorporates all the necessary equipment, cabling and piping in their final position upon their trailer platform used to support and transport.

The Trailer Mobile Concrete Batching Plant VOYAGER 90, has been primarily fully developed by Group TEXNOKAT and is patented based on the ΟΒΙ 2012/1007824 certificate.

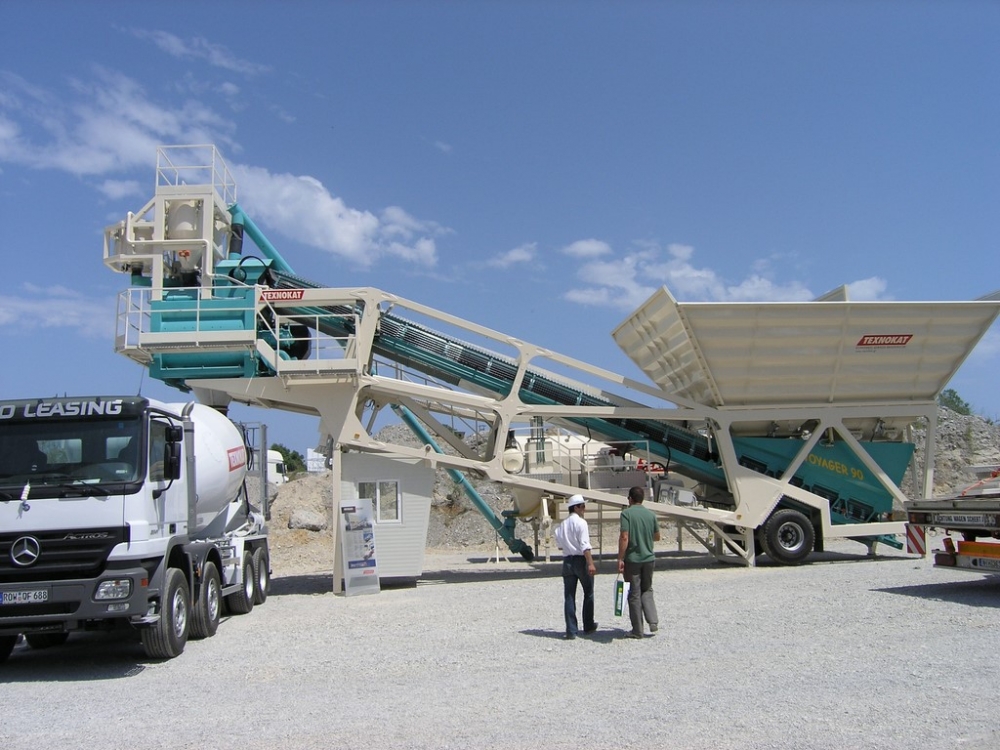

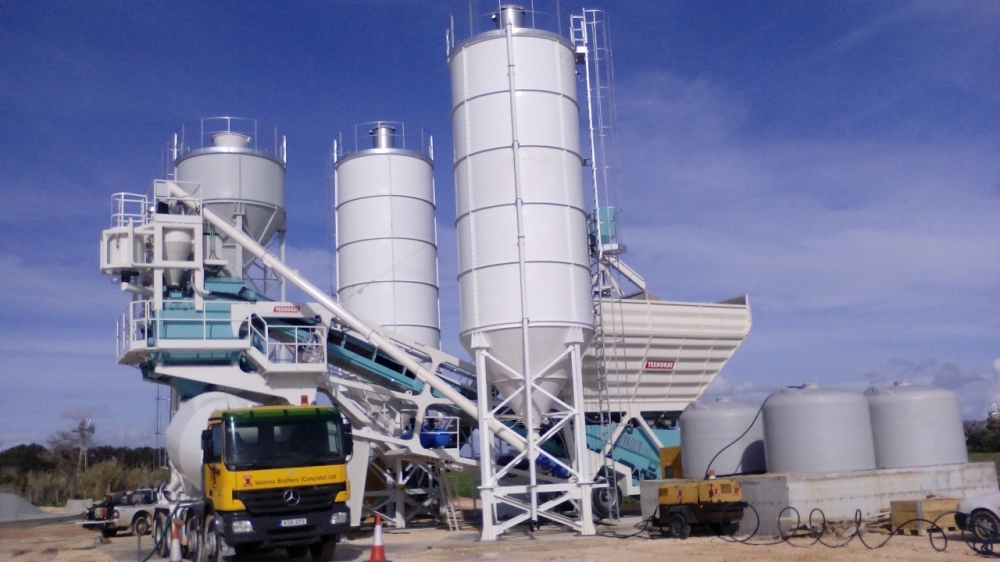

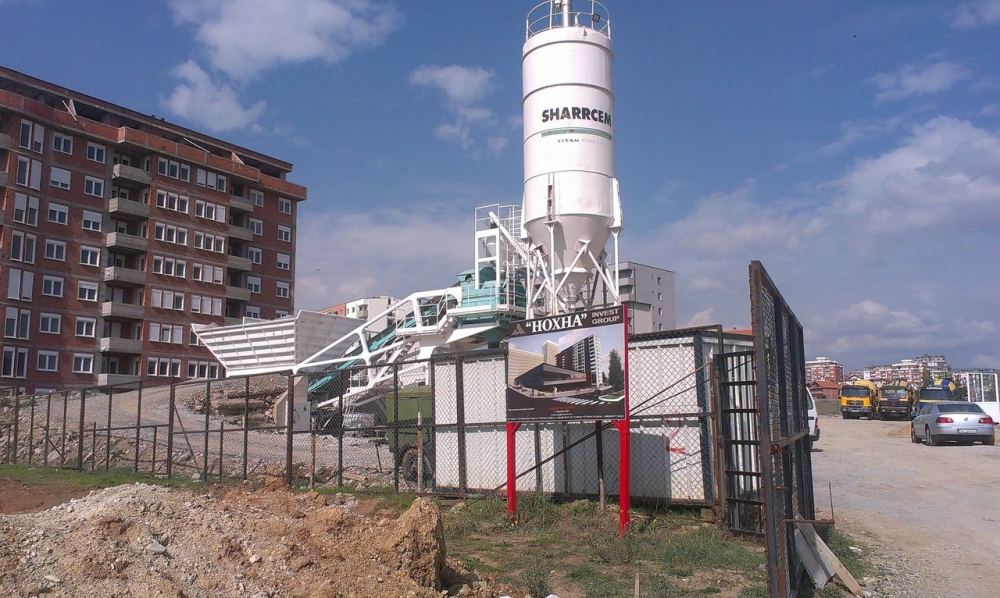

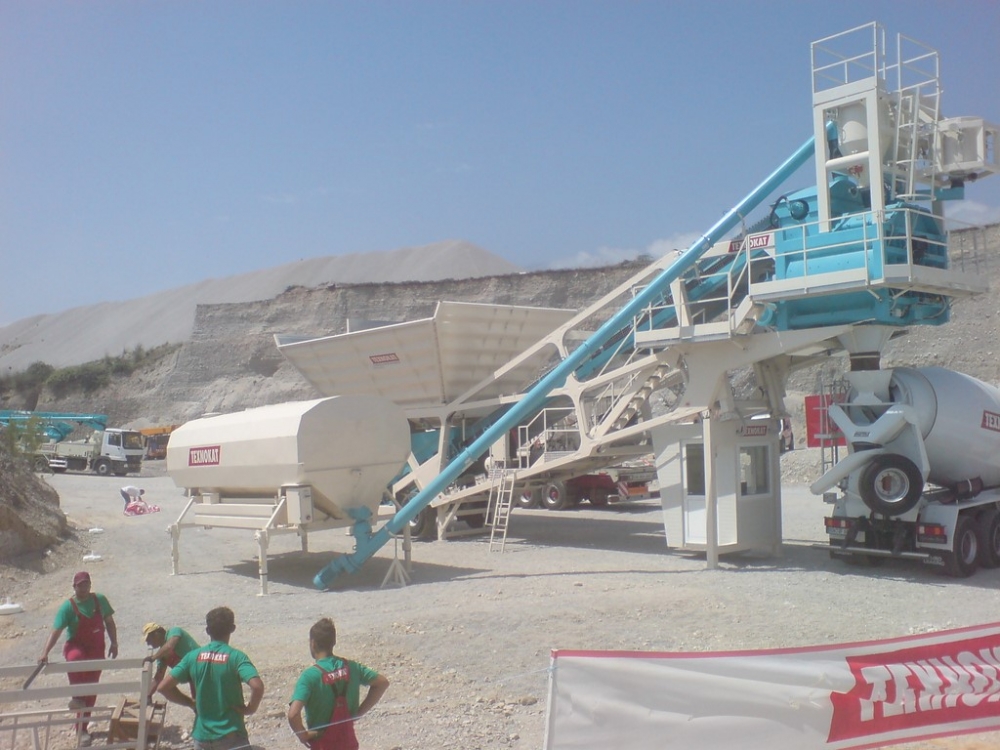

It can operate independently even at a far distant place covering the needs of every concreting work with the proper additions such as: horizontal cement silo, metallic ramp, electric generator, water tank and a pre-loading system.



TECHNICAL SPECIFICATION

VOYAGER 90M

PRODUCTION CAPACITY

90m3 VIBRATED CONCRETE

AGGREGATE STORAGE BINS

4 compartments x 12,5m3 = 50m3

AGGREGATE WEIGHING SCALE

7.000m3

MAIN CONVEYOR BELT

800 x 15.800mm

MIXER

2,5 m3 SICOMA MAO 3750/2500 TWIN SHAFT

CEMENT WEIGHING SCALE

1.500 lit –  with 3 load cells

CEMENT SCREW CONVEYOR

2 x Φ 273 x 9.000mm

CEMENT WEIGHING SCALE FILTER

FILTER WAM HOPPER - JET

WATER WEIGHING SCALE

700 lit –  with 3 load cells

ADDITIVE WEIGHING SCALE

 30 lit with 3 load cells

WATER PUMP

700Lit/min

AIR COMPRESSOR

4Kw, 500Lit

CONTROL CABIN

2 x 1,9 x 2,10 m

AIR CONDITION

9.000 BTU

ELECTRICAL PANEL

IP 54

AUTOMATION BETONMIND.NET V2.2

Controller with PC,22’ screen & laser printer

MANUAL FOR USE AND MAINTENANCE

Hardcopy and USB

TOTAL INSTALLED POWER

155,00 Kw



OPTIONAL EQUIPMENT VOYAGER 90M

  • Extend aggregate apartment to 80m3
  • Additional chemical additive weighing systems
  • Micro silica weighing scale with screw conveyor
  • Fly ash weighing scale with screw conveyor
  • Ice flake weighing scale
  • Water flow meter
  • Microwave humidity sensor
  • Moisture probe for mixer
  • Cement silo monolithic, bolted or horizontal
  • 3rd / 4th cement screw conveyor
  • Steel base for stationary cement silo with maintenance platform
  • Filter for cement silo
  • Safety valve for cement silo
  • Cement silo level indicators
  • Safe loading system for cement silo
  • Aggregate pre-loading system with remote control (vertical scoop)
  • Filter for mixer
  • High pressure wash out
  • Water tank
  • Power generator
