Voyager 135 M
TRAILER CONCRETE BATCHING PLANT
“VOYAGER 135-M”
Trailer concrete batching plant VOYAGER 135M. Travel and produces theoretically 135m3 per hour. Product of new thinking is the pioneer, reliable, integrates and trailer concrete batching plant.

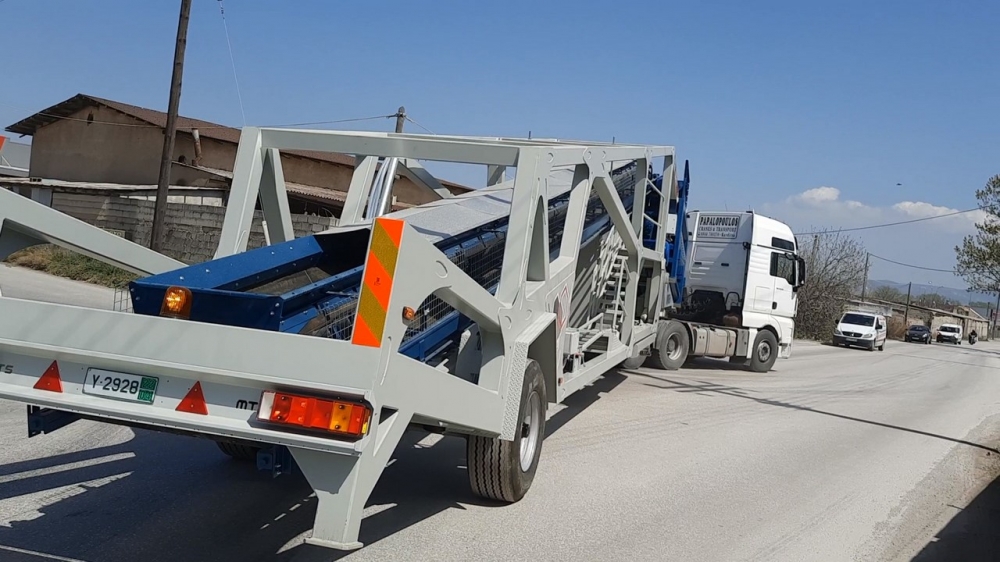

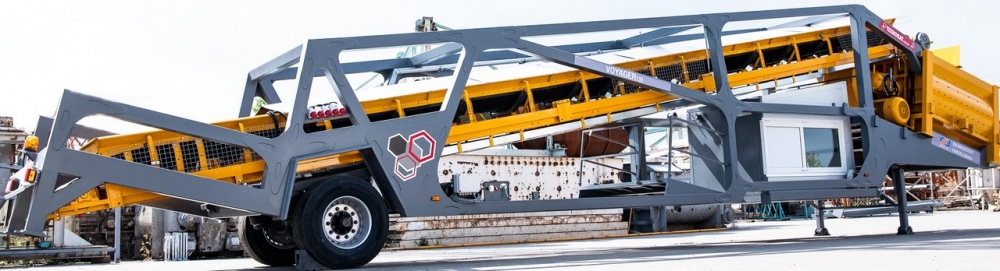

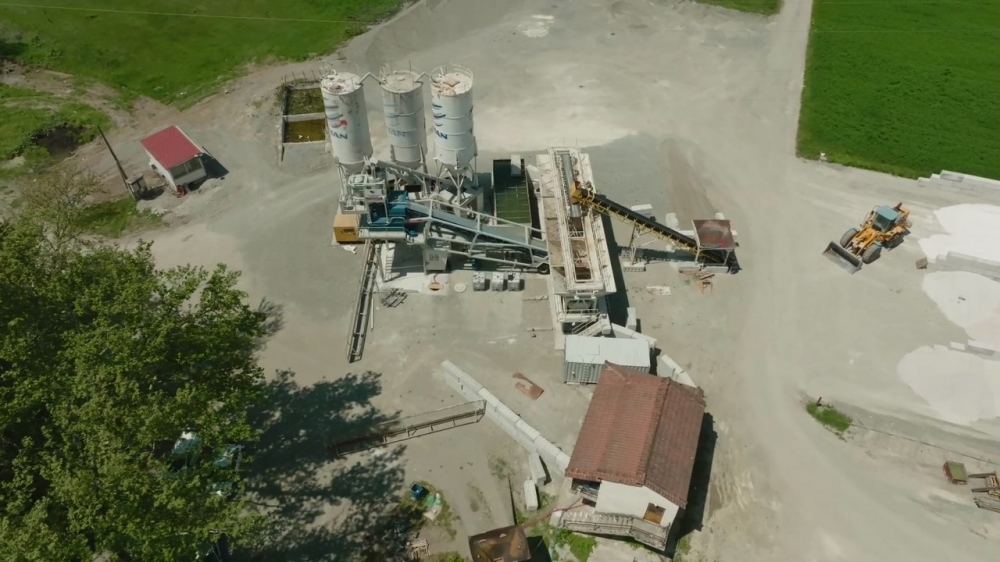

The concrete batching plant “VOYAGER 135-M” is a two (2) trailer vehicle, which has 135m3/h production capacity and can be set up in full operation within a few days.

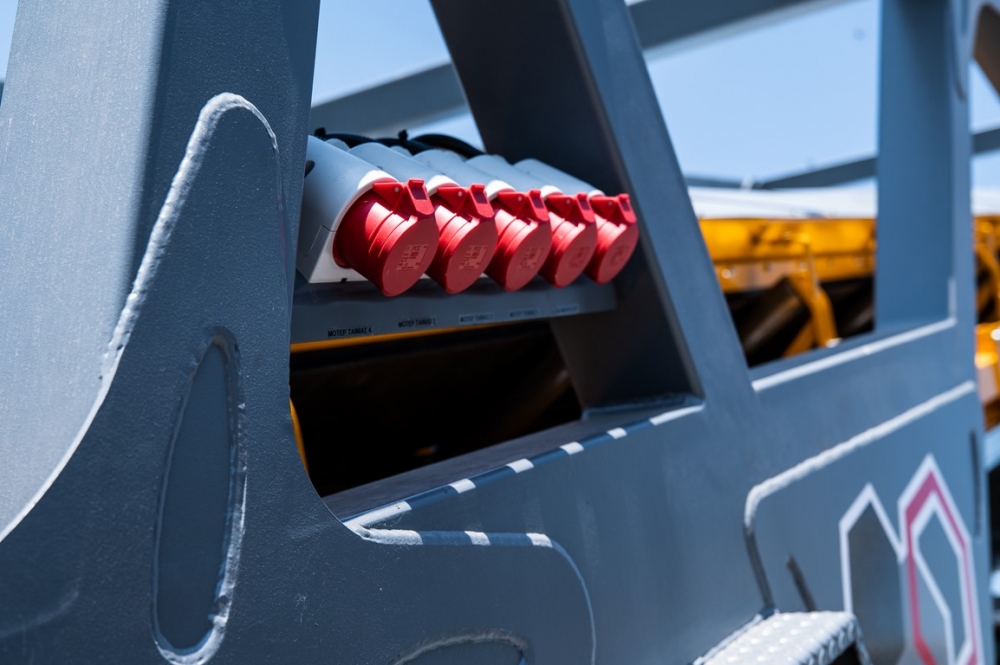

“VOYAGER 135-M” incorporates all the necessary equipment, cabling and piping in their final position upon their trailer platform used to support and transport.
The Trailer Mobile Concrete Batching Plant VOYAGER 135, has been primarily fully developed by Group TEXNOKAT.
It can operate independently even at a far distant place covering the needs of every concreting work with the proper additions such as: horizontal cement silo, metallic ramp, electric generator, water tank and a pre-loading system.
|
TECHNICAL SPECIFICATION |
VOYAGER 135M |
|
PRODUCTION CAPACITY |
135m3 VIBRATED CONCRETE |
|

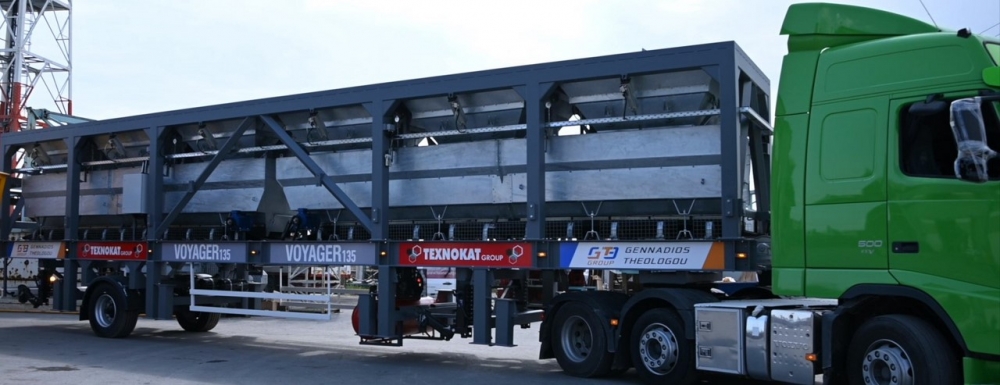

AGGREGATE STORAGE BINS |
4 compartments x 30m3 = 120m3 |
|
AGGREGATE WEIGHING SCALE |
9.000m3 |
|
MAIN CONVEYOR BELT |
1.200 x 15.800mm |
|
MIXER |
3,3 m3 SICOMA MAO 5000/3350 TWIN SHAFT |
|
CEMENT WEIGHING SCALE |
1.900 lit – with 3 load cells |
|
CEMENT SCREW CONVEYOR |
2 x Φ 323 x 12.000mm |
|
CEMENT WEIGHING SCALE FILTER |
FILTER WAM HOPPER - TOP |
|
WATER WEIGHING SCALE |
900 lit – with 3 load cells |
|
ADDITIVE WEIGHING SCALE |
30 lit with 1 load cell |
|

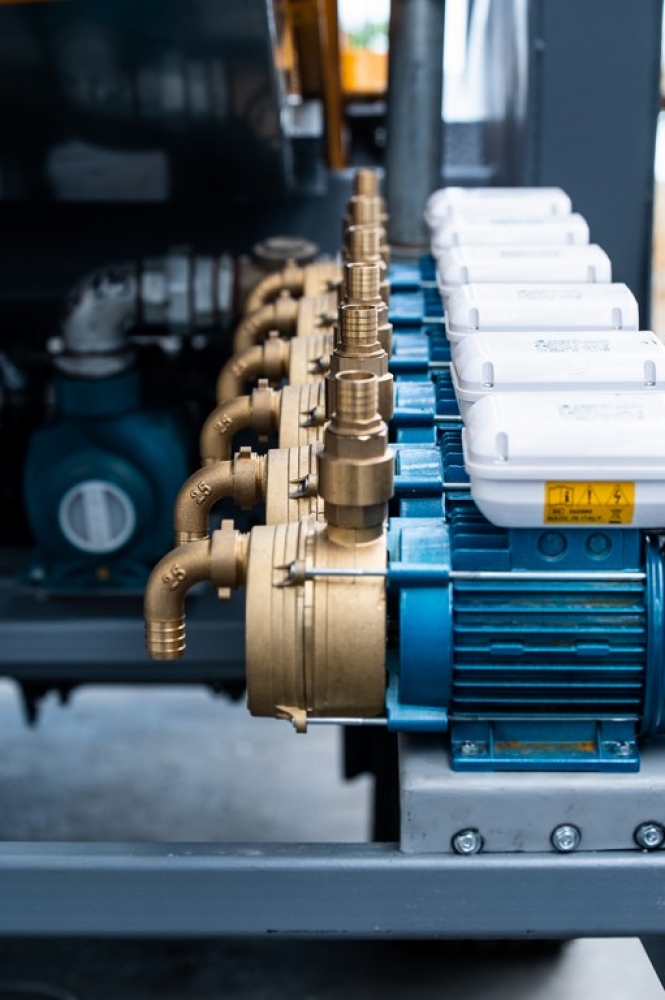

WATER PUMP |
900Lit/min |
|
AIR COMPRESSOR |
5,5 Kw, 500Lit |
|
CONTROL CABIN |
2 x 2,30 x 2,10 m |
|
AIR CONDITION |
9.000 BTU |
|
ELECTRICAL PANEL |
IP 54 |
|
AUTOMATION BETONMIND.NET V2.2 |
Controller with PC,22’ screen & laser printer |
|
MANUAL FOR USE AND MAINTENANCE |
Hardcopy and USB |
|
TOTAL INSTALLED POWER |
250,00 Kw |
OPTIONAL EQUIPMENT VOYAGER 135M
- Extend aggregate apartment from 4 (120m3) to 6 apartments with total capacity 180m3
- Additional chemical additive weighing systems.
- Micro silica weighing scale with screw conveyor.
- Fly ash weighing scale with screw conveyor.
- Ice flake weighing scale.
- Water flow meter
- Microwave humidity sensor
- Moisture probe for mixer
- Cement silo monolithic, bolted or horizontal
- 3rd / 4th cement screw conveyor
- Steel base for stationary cement silo with maintenance platform
- Filter for cement silo
- Safety valve for cement silo
- Cement silo level indicators
- Safe loading system for cement silo
- Aggregate pre-loading system with remote control (wagon type)
- Filter for mixer
- High pressure wash out
- Water tank
- Power generator
