Ptolemeos 20-60



The ‘little giant’ with the easy aggregate loading and the exceptional reliability in concrete production.

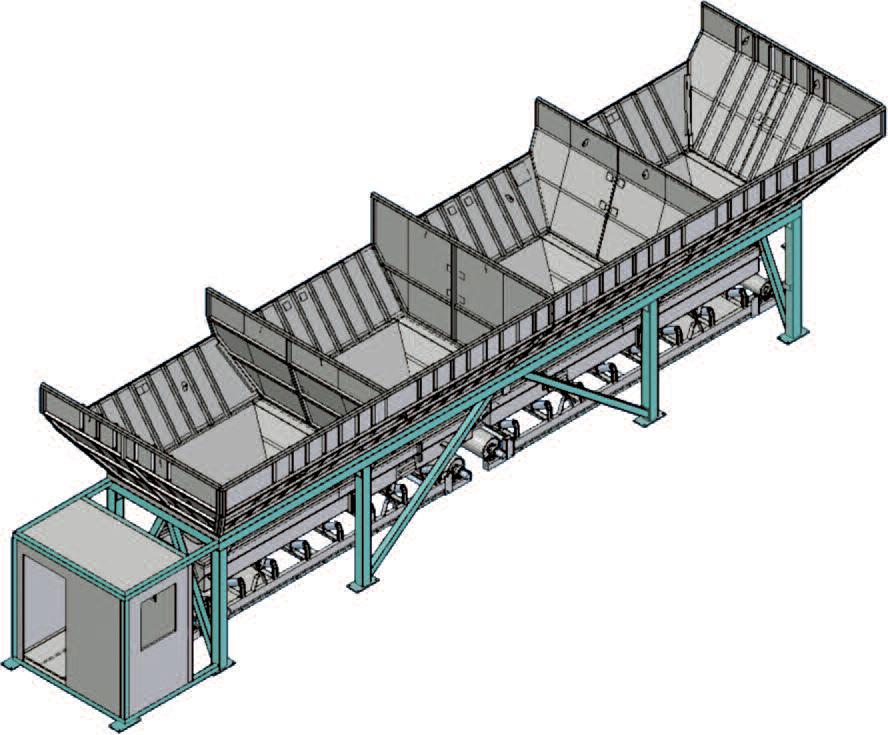

ptolemeos 20 60 01





Except all the parameters that show the character of a plant which is manufactured by Group TEXNOKAT, PTOLEMEOS has some extra features that make him unique.

Aggregate loading can be from 0 level with loader without ramp. It does not require loading ramp due to its small size. It can be feed by any type of loader and even with a bobcat without ramp.

The operator cabin is fixed with aggregate hopper, so the machine is prewired and pre-connected. The control cabin includes: High voltage Electrical Board, Software BetonMind by Iliatoras, Air-condition, set of all the electrical and coaxial cables which is already attached to the board.

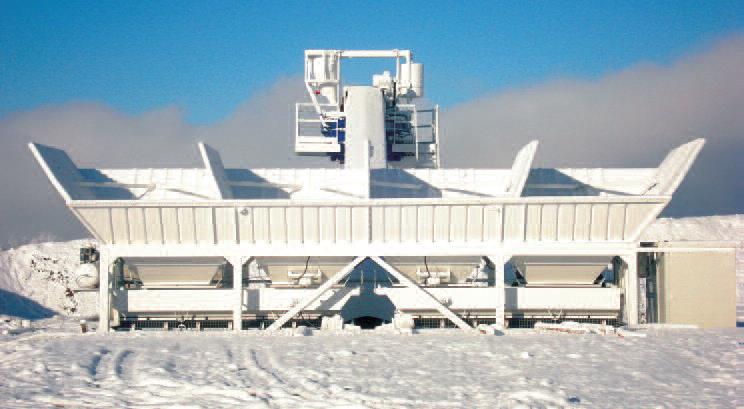

ptolemeos 20 60 02



PTOLEMEOS gives the production capacity that promise in any circumstance. It is transported in only (2) normal truck and can be transported, with minimum cost, by land, sea and air. It can be set up in full operation in just (96) hours.

It operates independently even at the far distant place covering the needs of every concreting work, with the proper additions, such as: truck mounted cement silo, metallic ramp, electric generator and water tank.

It is environmentally friendly with low dust and noise emissions with low energy consumption.



TECHNICAL SPECIFICATION

PTOLEMEOS 20

PTOLEMEOS 40

PTOLEMEOS 60

PRODUCTION CAPACITY

20m3 vibrated concrete

40m3 vibrated concrete

60m3 vibrated concrete

AGGREGATE STORAGE BINS

2 compartments x 12,5m3 = 25m3

3 compartments x 12,5m3 = 37,50m3

4 compartments x 12,5m3 = 50m3

AGGREGATE WEIGHING SCALE (BELT)

400 x 5.150mm

500 x 7.800mm

2 x 650 x 4.650mm

MAIN CONVEYOR BELT

400 x 14.000mm

500 x 15.000mm

650 x 17.000mm

TWIN SHAFT MIXER

0,5m3 SICOMA MAO 750/500

1m3 SICOMA MAO 1500/1000

1,5m3 SICOMA  2250/1500

CEMENT WEIGHING SCALE

300 lit –  with 3 load cells

500 lit –  with 3 load cells

750 lit –  with 3 load cells

CEMENT SCREW CONVEYOR

1 x Φ 168 x 9.000mm

1 x Φ 193 x 9.000mm

2 x Φ 219 x 9.000mm

CEMENT WEIGHING SCALE FILTER

FILTER WAM HOPPER - JET

FILTER WAM HOPPER - TOP

FILTER WAM HOPPER - TOP

WATER WEIGHING SCALE

200 lit –  with 3 load cells

300 lit –  with 3 load cells

500 lit –  with 3 load cells

ADDITIVE WEIGHING SCALE

1 x 10 lit with 1 load cell

1 x 15 lit with 1 load cell

1 x 20 lit with 1 load cell

WATER PUMP

200Lit/min

350Lit/min

500Lit/min

AIR COMPRESSOR

3Kw, 280Lit

3Kw, 280Lit

3Kw, 280Lit

CONTROL CABIN

 2 x 1,9 x 2,10 m

 2 x 1,9 x 2,10 m

 2 x 1,9 x 2,10 m

AIR CONDITION

9.000 BTU

9.000 BTU

9.000 BTU

ELECTRICAL PANEL

IP 54

IP 54

IP 54

AUTOMATION BETONMIND.NET V2.2

Controller with PC, 22’ screen & laser printer

Controller with PC, 22’ screen & laser printer

Controller with PC, 22’ screen & laser printer

MANUAL FOR USE AND MAINTENANCE

Hardcopy and USB

Hardcopy and USB

Hardcopy and USB

TOTAL INSTALLED POWER

60 KW

76 KW

97 KW



OPTIONAL EQUIPMENT PTOLEMEOS

  • 5TH / 6TH Aggregate apartment
  • Metal base for aggregate hopper
  • Maintenance balcony for conveyor belt
  • Galvanized metal cover for conveyor belt
  • Additional chemical additive weighing systems
  • Micro silica weighing scale with screw conveyor
  • Fly ash weighing scale with screw conveyor
  • Ice flake weighing scale
  • Water flow meter
  • Microwave humidity sensor
  • Cement silo monolithic, bolted or horizontal
  • 3rd / 4th cement screw conveyor
  • Steel base for stationary cement silo with maintenance platform
  • Filter for cement silo
  • Safety valve for cement silo
  • Cement silo level indicators
  • Safe loading system for cement silo
  • Filter for mixer
  • Moisture probe for mixer
  • High pressure wash out
  • Water tank
  • Power generator
