Passenger 60

Product of new thinking is the pioneer, reliable, integrates and mobile concrete batching plant.

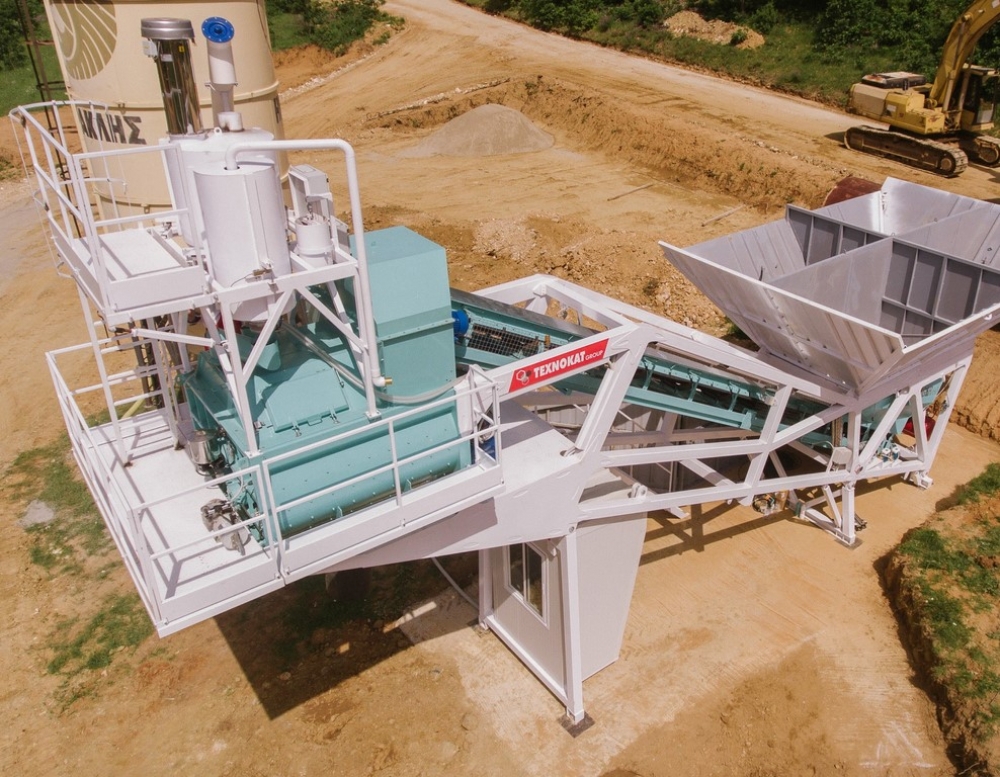

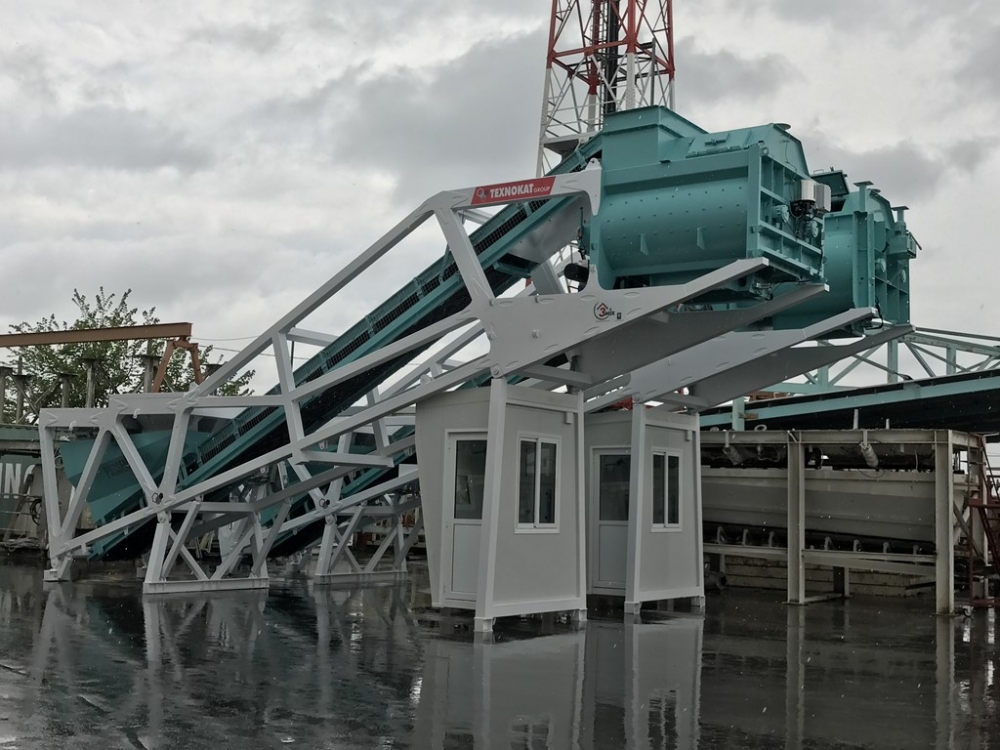

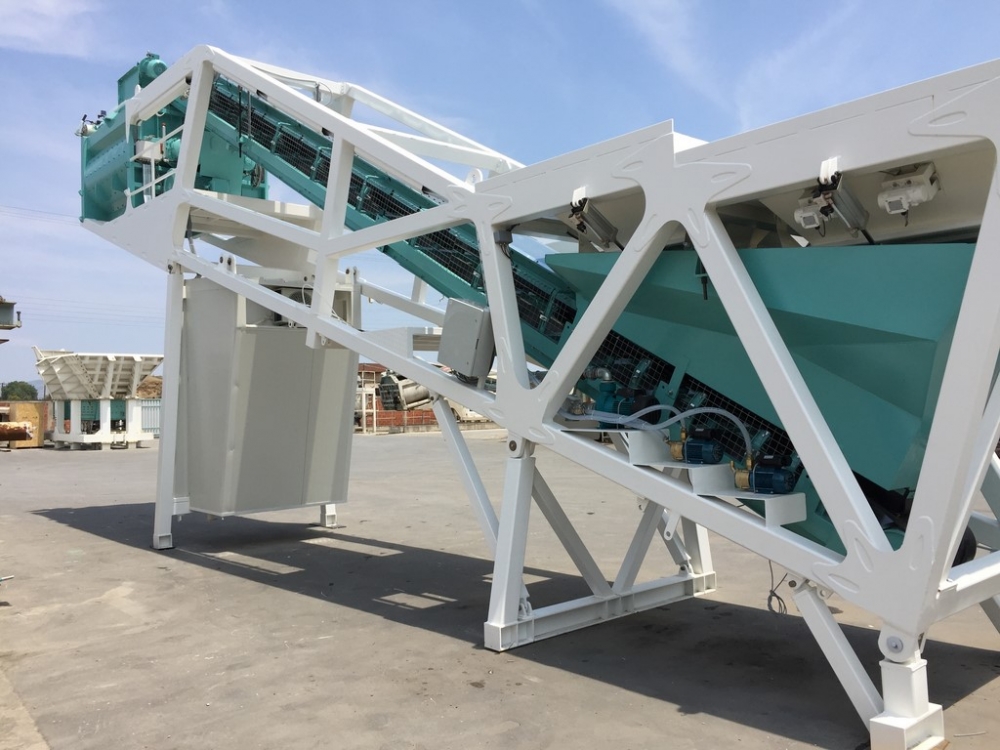

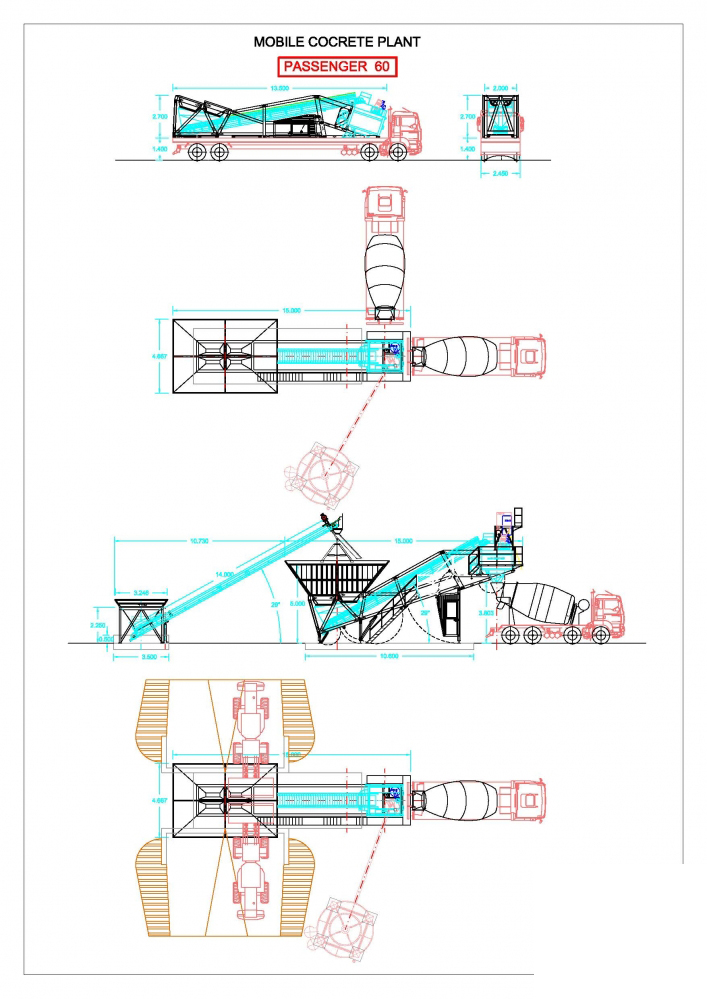

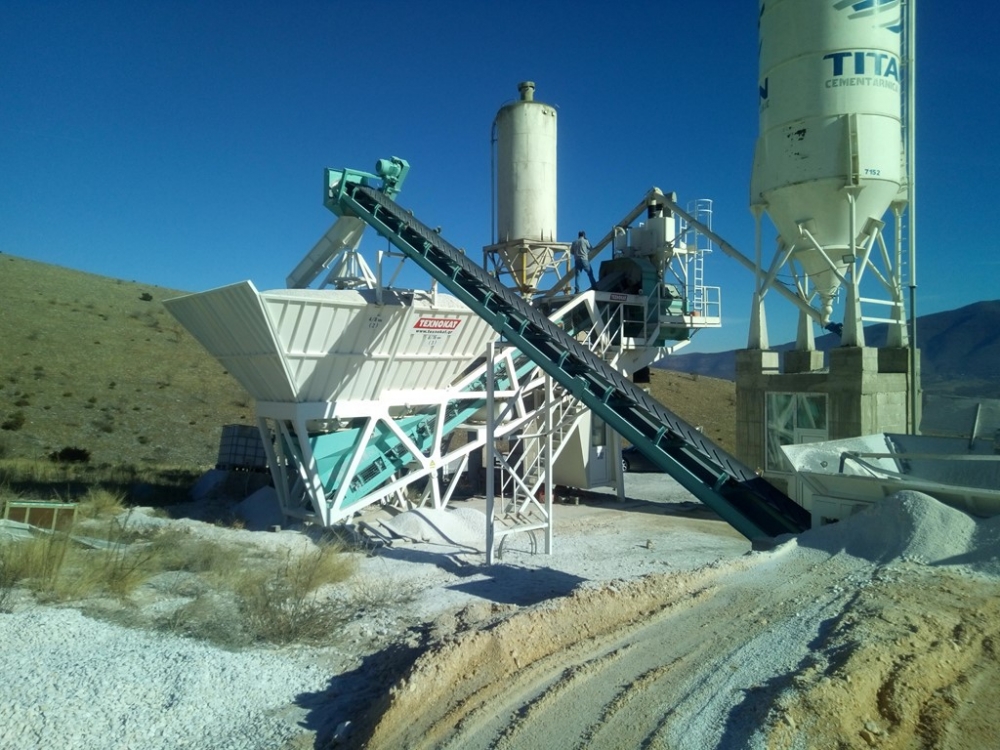

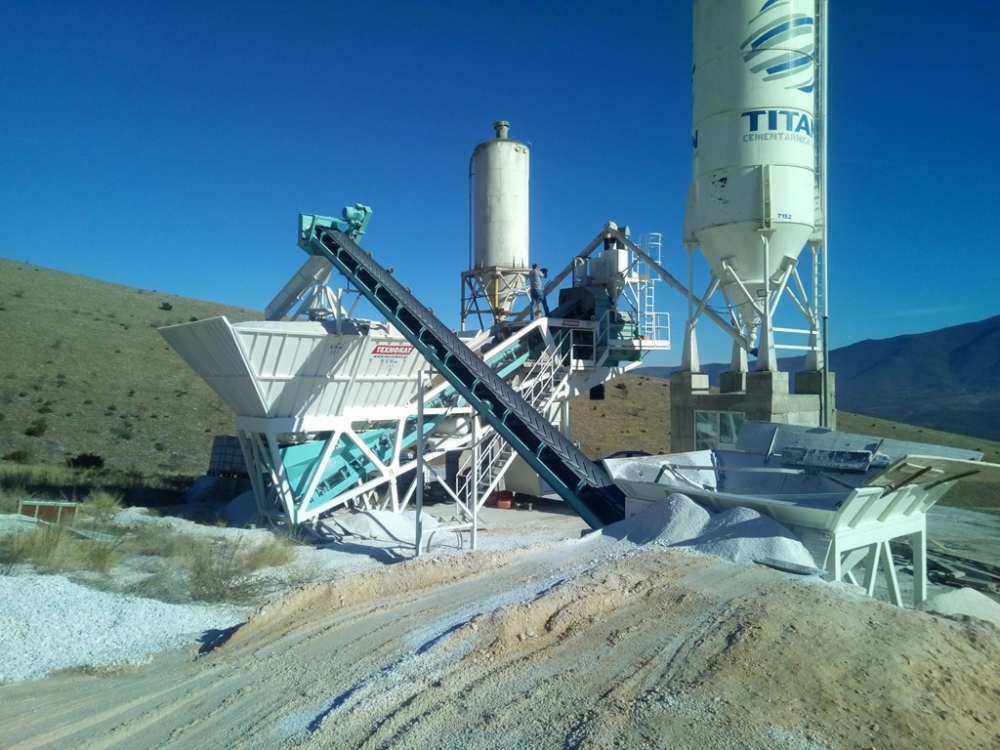

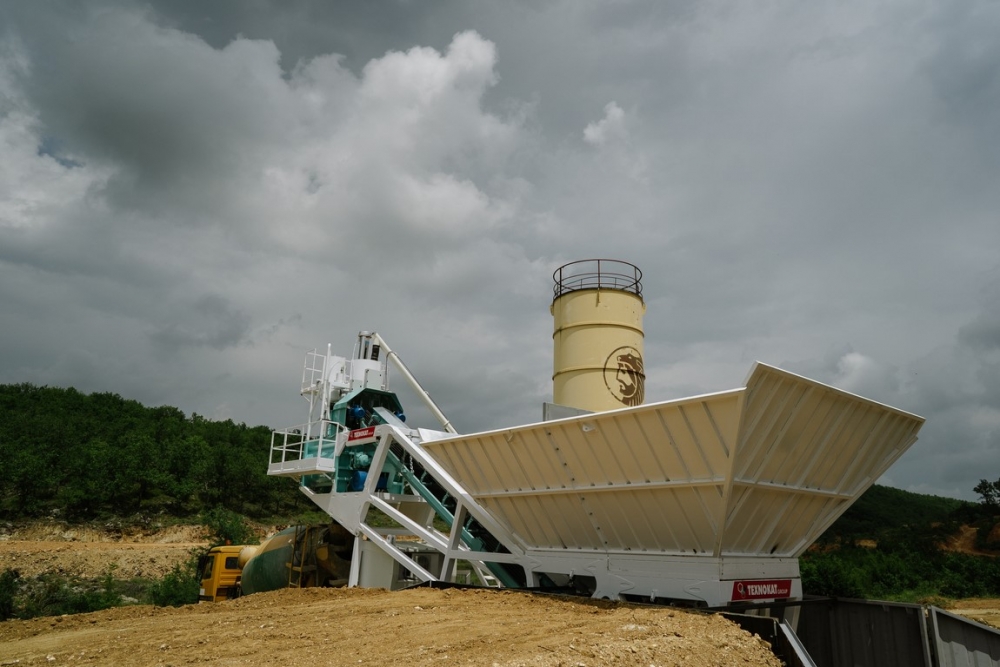

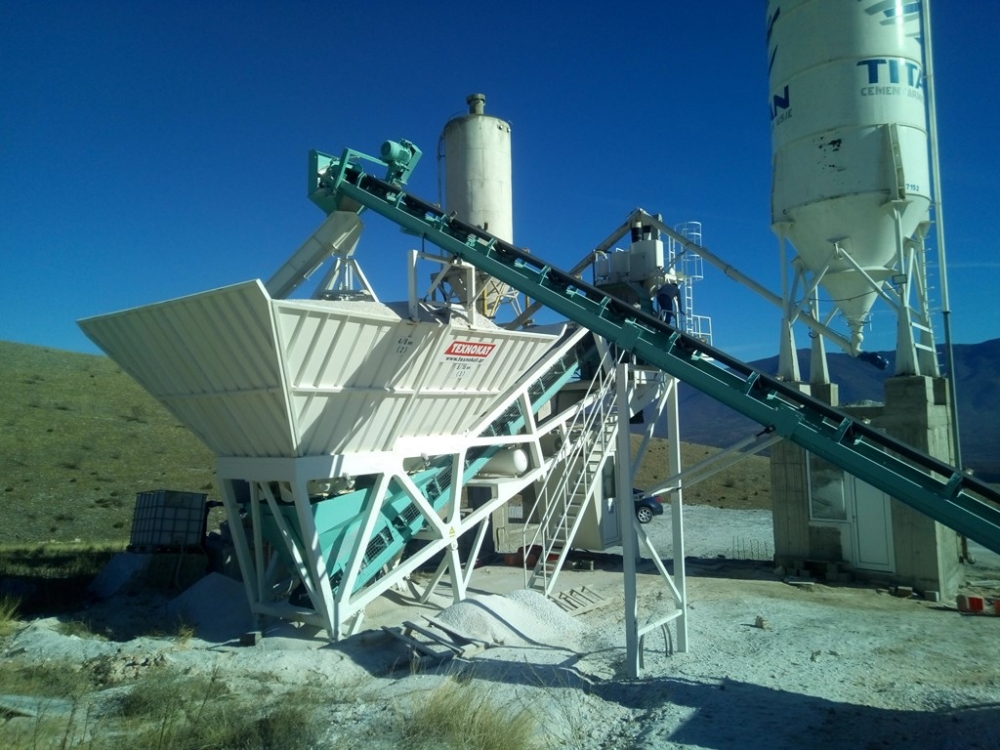

The concrete batching plant “PASSENGER 60” is a mobile plant, which gives 60m3/h production capacity and can be set up in full operation within few hours.

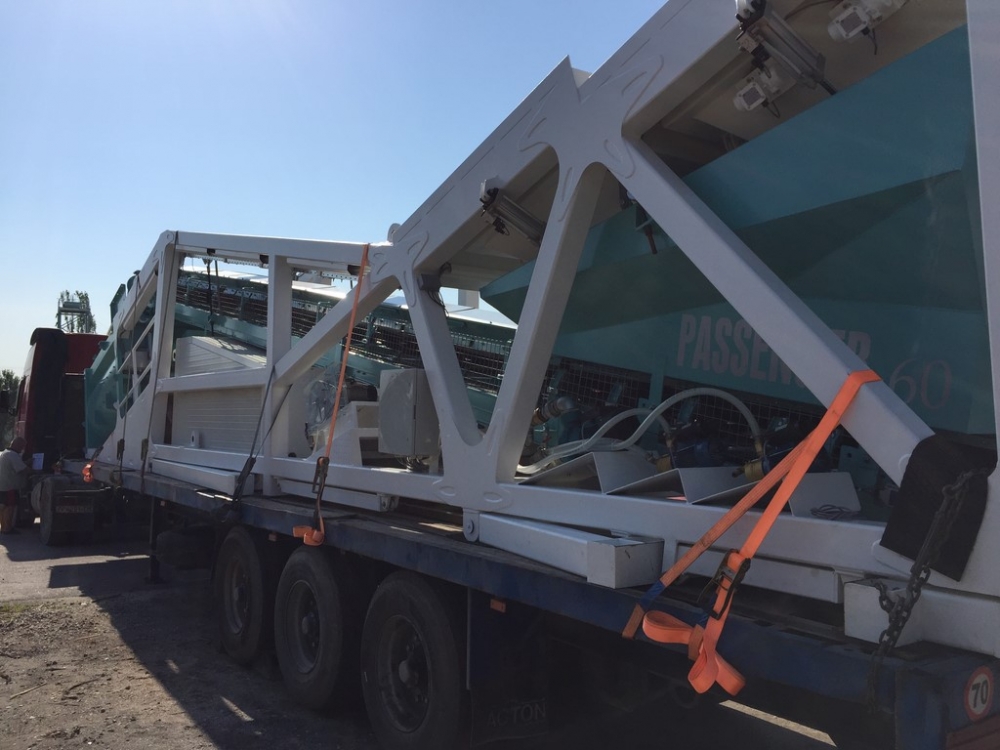

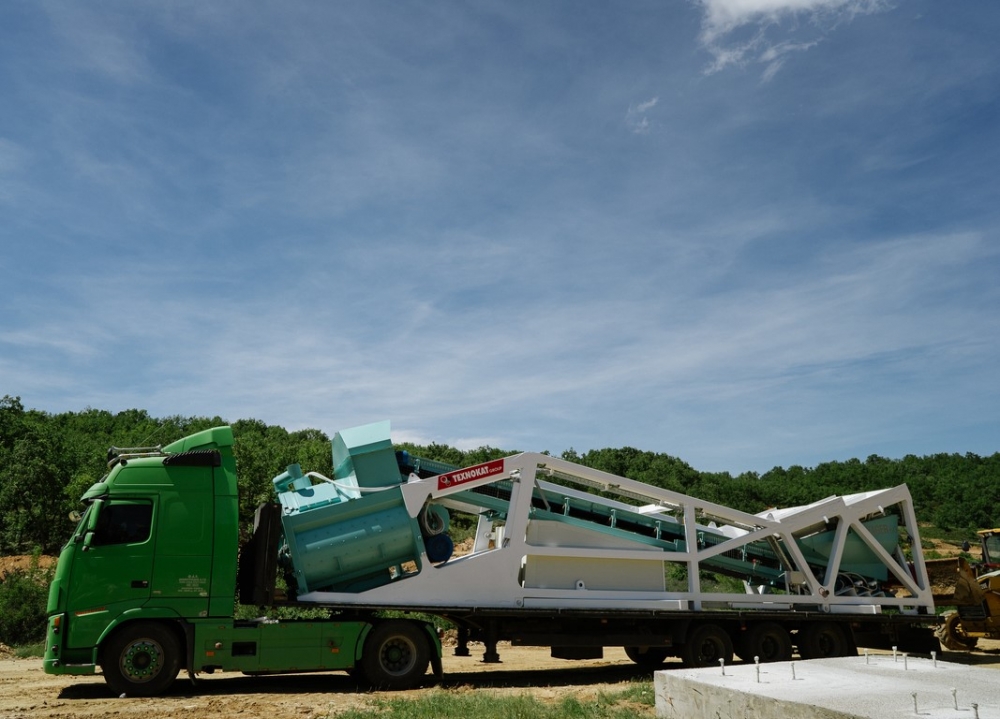

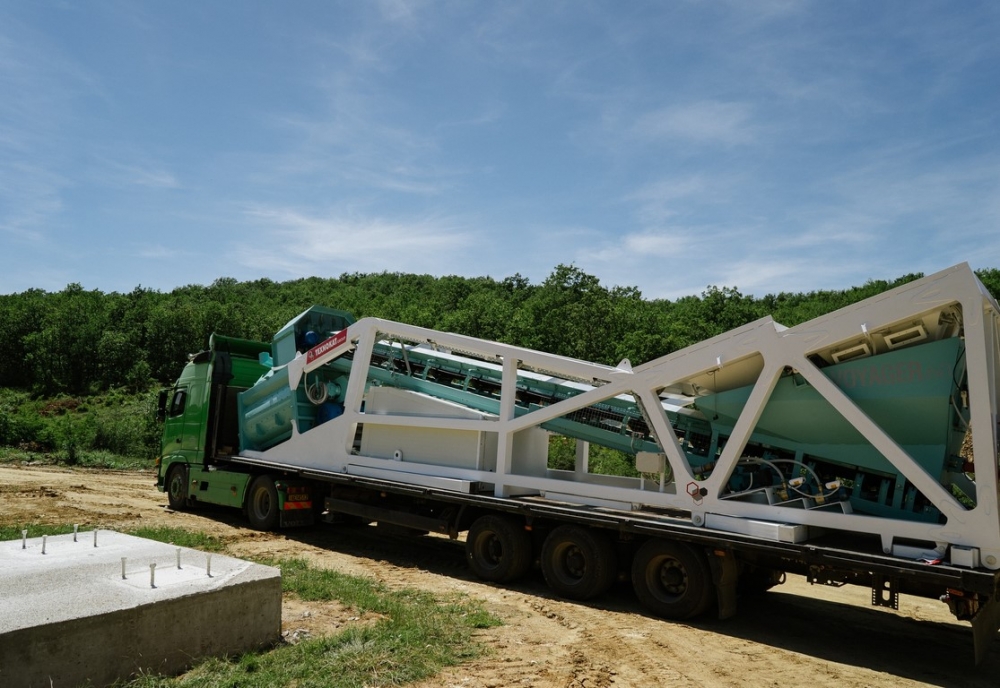

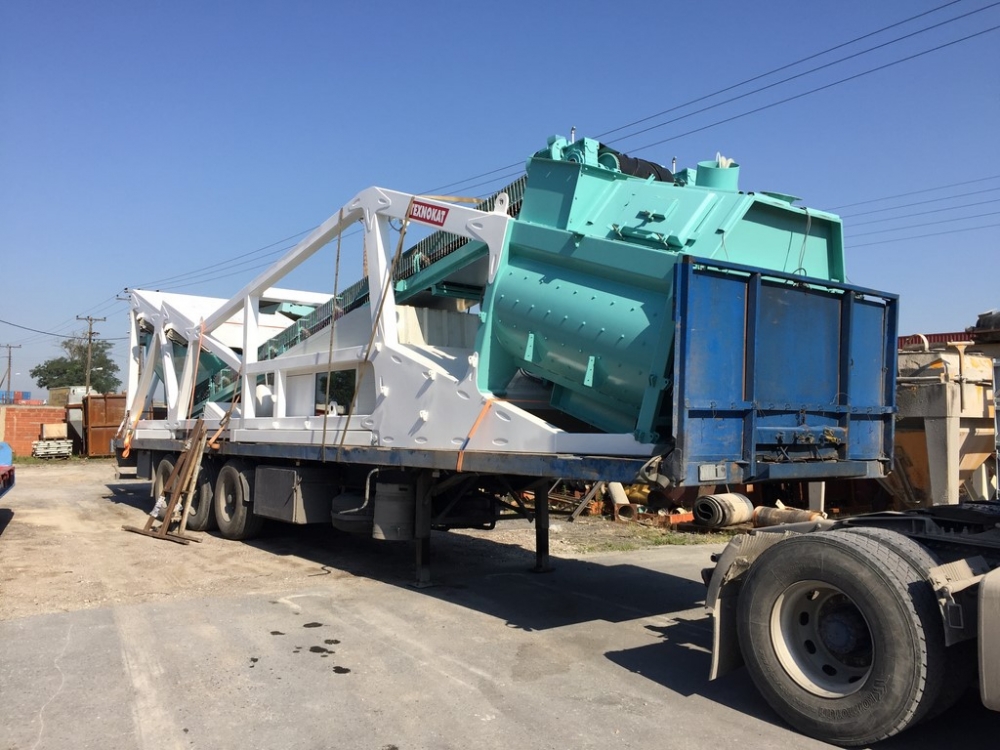

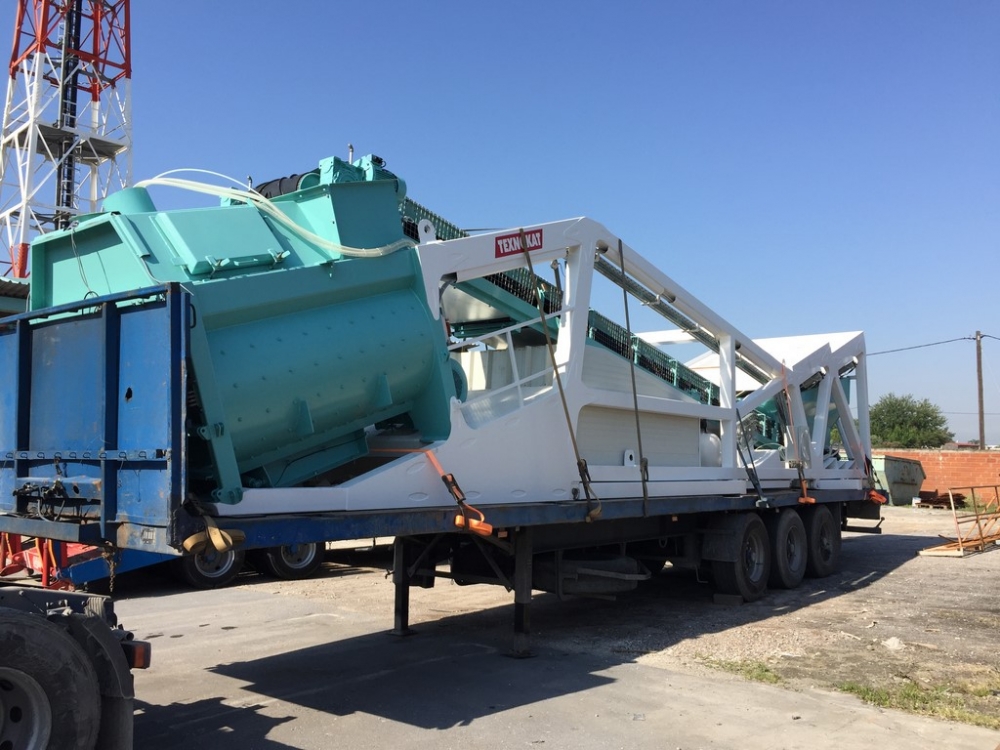

“PASSENGER 60” incorporates all the necessary equipment, cabling and piping in their final position upon their mobile platform used to support and transport in just one (1) truck/trailer

It can operate independently even at a far distant place covering the needs of every concreting work with the proper additions such as: horizontal cement silo, metallic ramp, electric generator, water tank and a pre-loading system.



TECHNICAL SPECIFICATION

PASSENGER 60

PRODUCTION CAPACITY

60m3 / h VIBRATED CONCRETE

AGGREGATE STORAGE BINS

4 compartments x 7,5m3 = 30m3

MAIN CONVEYOR BELT

650 x 11.600mm

MIXER

TWIN SHAFT 1,5 m3 SICOMA MAO 2250/1500

CEMENT WEIGHING SCALE

720 lit –  with 3 load cells

CEMENT SCREW CONVEYOR

1 x Φ 219 x 9.000mm

CEMENT WEIGHING SCALE FILTER

FILTER WAM HOPPER - TOP

WATER WEIGHING SCALE

330 lit –  with 3 load cells

ADDITIVE WEIGHING SCALE

1 x 20 lit with 1 load cell

WATER PUMP

700 Lit/min

AIR COMPRESSOR

3Kw, 280Lit

CONTROL CABIN

1,2 x 2,0 x 2,50 m

AIR CONDITION

9.000 BTU

ELECTRICAL PANEL

IP 54

AUTOMATION BETONMIND.NET V2.2

Controller with PC, 22’ screen & laser printer

MANUAL FOR USE AND MAINTENANCE

Hardcopy and USB

TOTAL INSTALLED POWER

80,00 Kw



OPTIONAL EQUIPMENT PASSENGER 60

  • Extend aggregate apartment to 50m3
  • Additional chemical additive weighing systems
  • Micro silica weighing scale with screw conveyor
  • Fly ash weighing scale with screw conveyor
  • Ice flake weighing scale
  • Water flow meter
  • Microwave humidity sensor
  • Moisture probe for mixer
  • Cement silo monolithic, bolted or horizontal
  • 2nd / 3rd cement screw conveyor
  • Steel base for stationary cement silo with maintenance platform
  • Filter for cement silo
  • Safety valve for cement silo
  • Cement silo level indicators
  • Safe loading system for cement silo
  • Aggregate pre-loading system with remote control (vertical scoop)
  • Filter for mixer
  • High pressure wash out
  • Water tank
  • Power generator
