Concrete Batching Plants

hermes 40 large



Automation BETONMIND.NET



Since 2003, ILIATORAS S.A. invested in new software development technologies to design new atomization and management systems, with the most up-to-date development tools, managing by this way to create the most perfect and helpful industrial automation systems.

Consisting of experienced staff with high level know how, whose target was to develop automation solutions, for the managing of concrete batching plant operation.

Another factor on which ILIATORAS S.A. has invested a lot, is the products support and after sales service. For this reason, new , fully qualified technical staff, was picked up, and new modern support techniques were developed , so as to support with the best way all these new installations.

BETONMIND.net was the final result. An industrial automation for the management of concrete batching plants. It is the modern concept and approach to manage and produce concrete. The application is designed with the most modern programming tools, monitors developments and implements innovations. It is constantly evolving and upgrading.

Today we install the fourth version of BETONMIND, and we can proudly say that we are compatible with the most difficult demands in any kind of request. Hundred applications are already installed all over the world.

BETONMIND Premium V 2.2 is the fourth edition and able to satisfy from the simplest concrete unit till the most complicated unit that should produce the most challenging concrete recipe.

BETONMIND Premium V 2.2



Offers

Modern and friendly working environment
3D Animated Environment. Modern and Friendly Design
Absolutely data validity
Remote Management Feature.



Ensures

Precision in Weighting
Speed production. Wins up to 2’ per truck mixer.
Easy to set up. Set up without technical intervention
Installation and operation in one day.
Security and Reliability. Ability to download back up data.
Collection of reports of production, consumed or data analysis. Ability to store and print.
Multilingual support.



BetonMind Premium Version 2.2 supports the following:

  • 3 to 8 Aggregates Hoppers with 1 or 2 Weighing scale
  • 2 to 8 Cement Silos
  • 4 Additives storages with 2 weighing scales or a meter
  • 2 Water storages with 2 weighing scales or meter
  • 1 or 2 mixers with 1, 2 or 3 doors
  • 1 to 8 microwave sensors in the aggregate hoppers
  • 8 Level indicators in the cement silos
  • Use of aggregates buffer (pre-storage hopper)
  • Use of skip hoist
  • Rest of storages
  • Printing of Productions – Use of materials
  • Delivery notes
  • General Stop

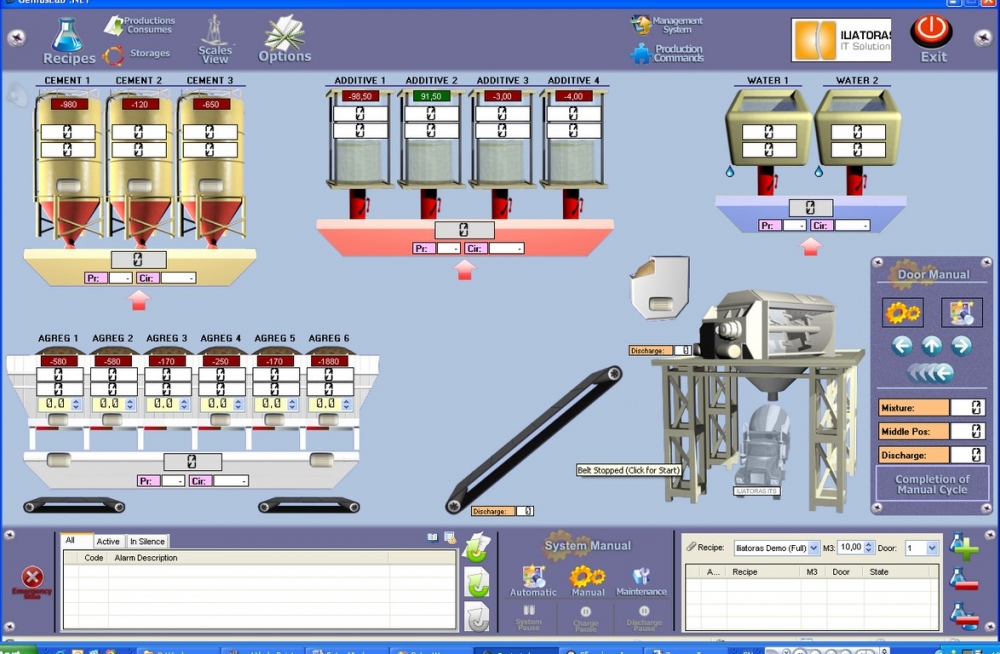

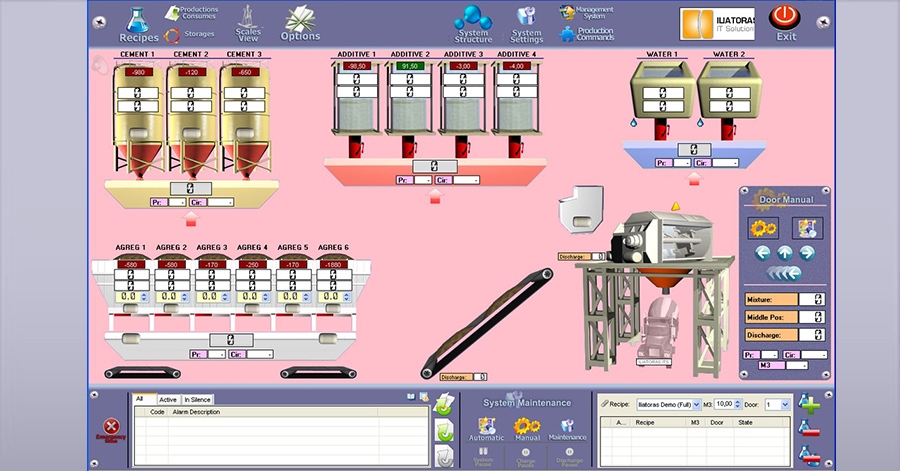

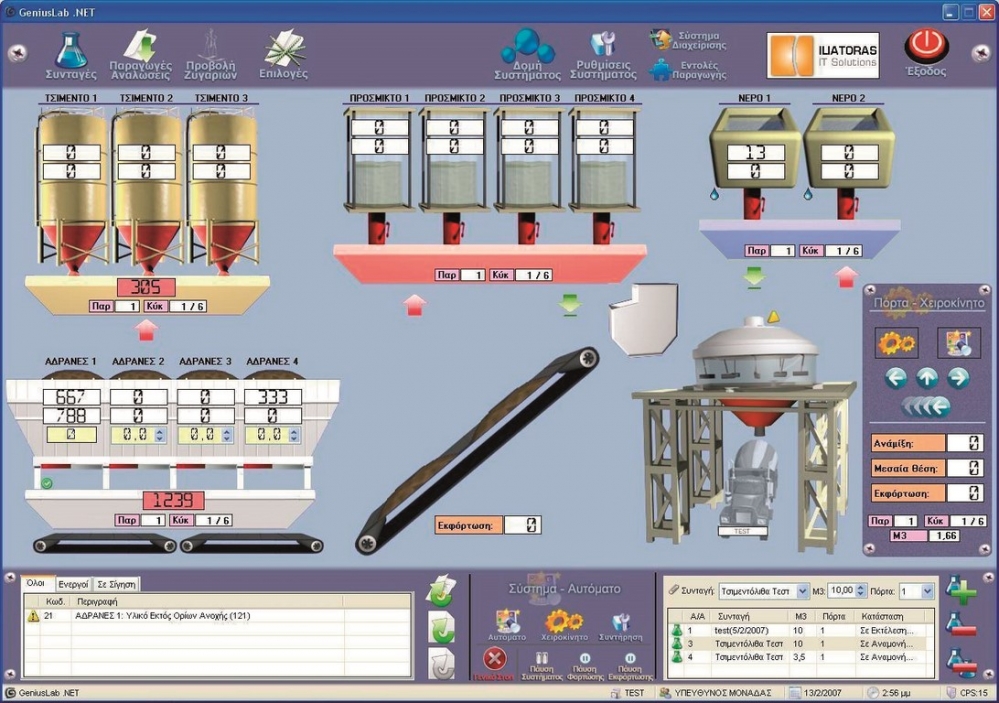

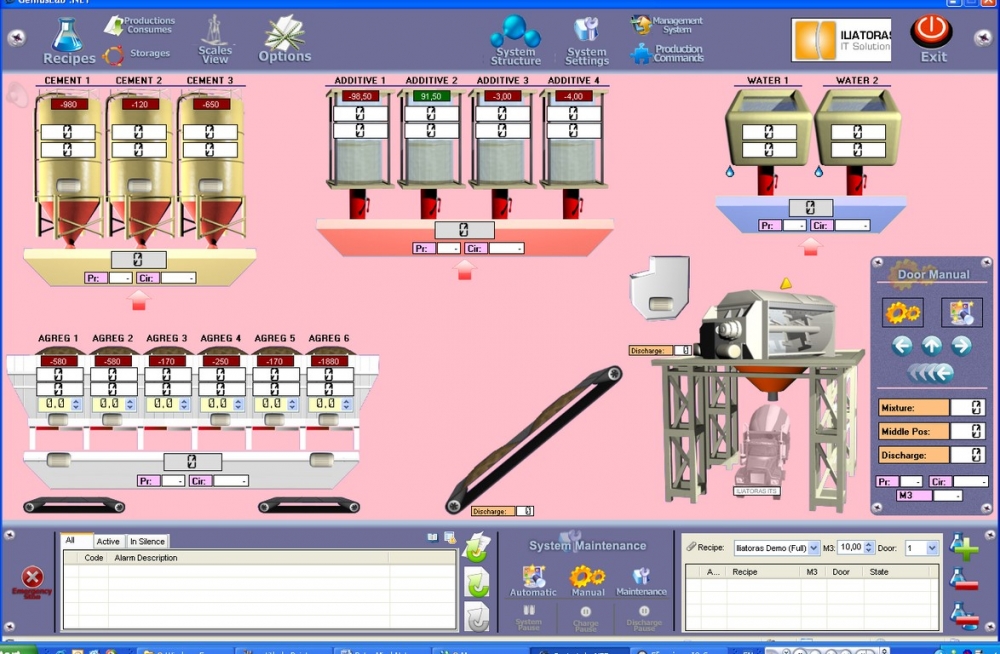

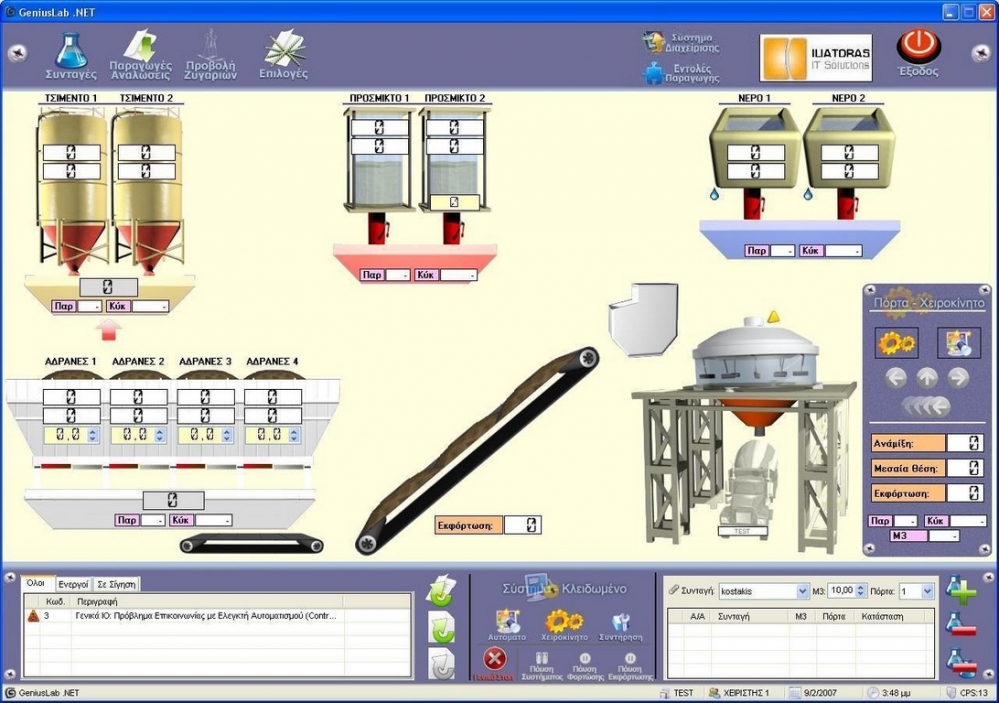

  • 3D Animated Presentation and control
  • Automatic – Manual – Service operation through PC
  • Operation of system maintenance
  • Calibration of scales in only 2 steps
  • Easy change of raw materials during production
  • Endless number of recipes
  • Endless history of productions
  • Full range of alarm system
  • Very easy to comprehend alarm system
  • Help – History of alarms
  • User support – Access licenses
  • Safety copies
  • Compatible with the new Greek Concrete technology regulation of 2016
