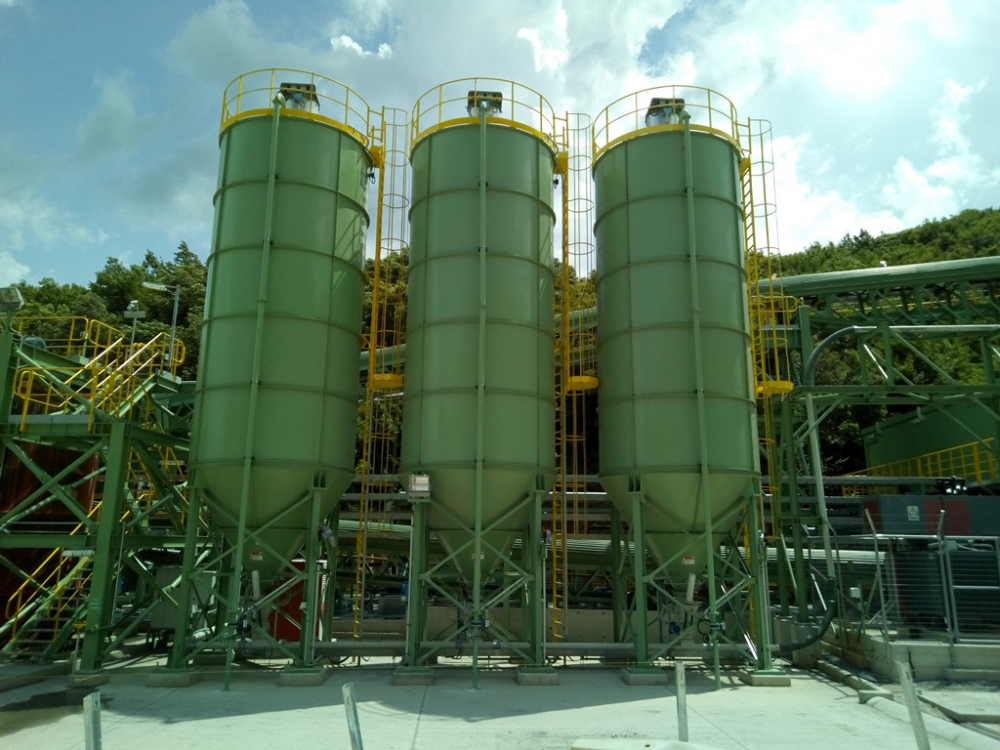

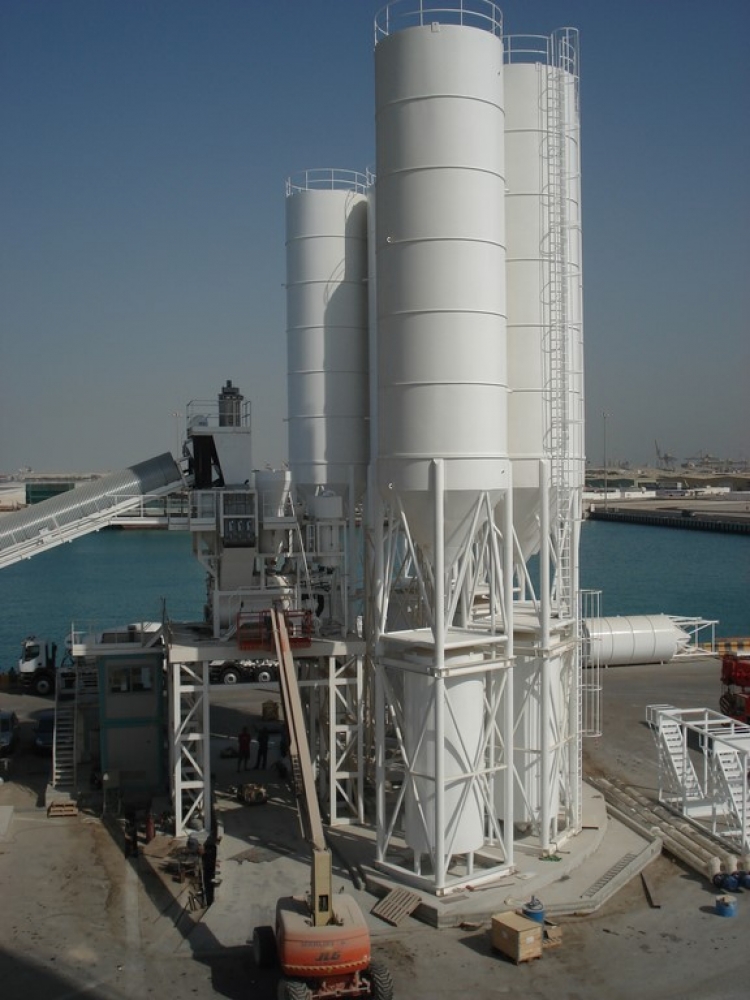

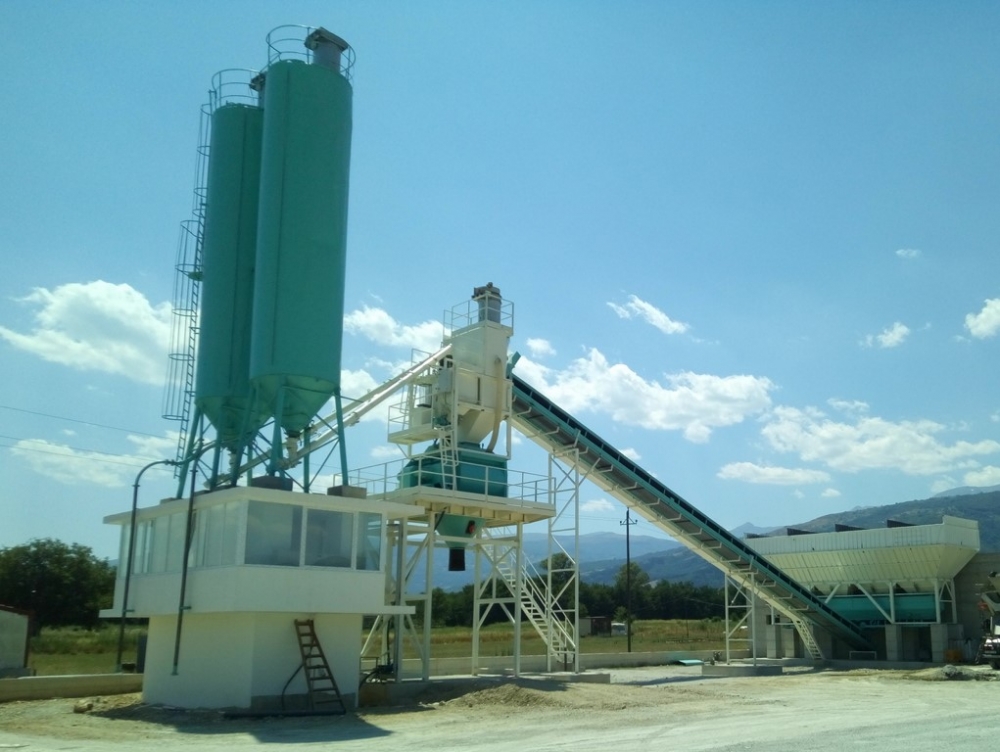

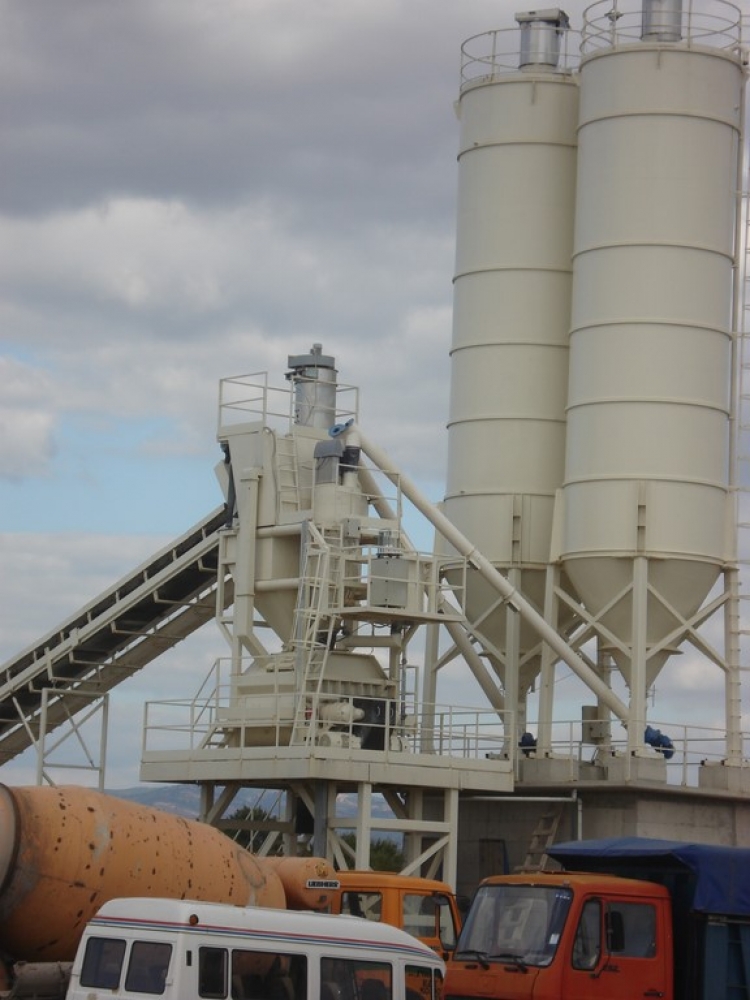

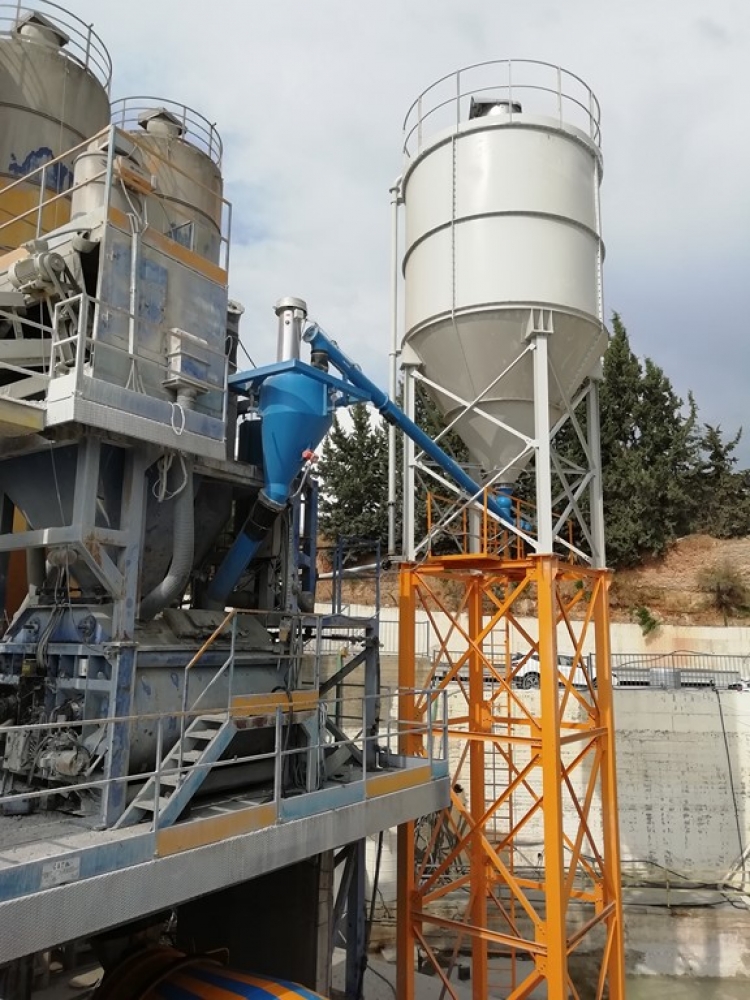

Cement Silo

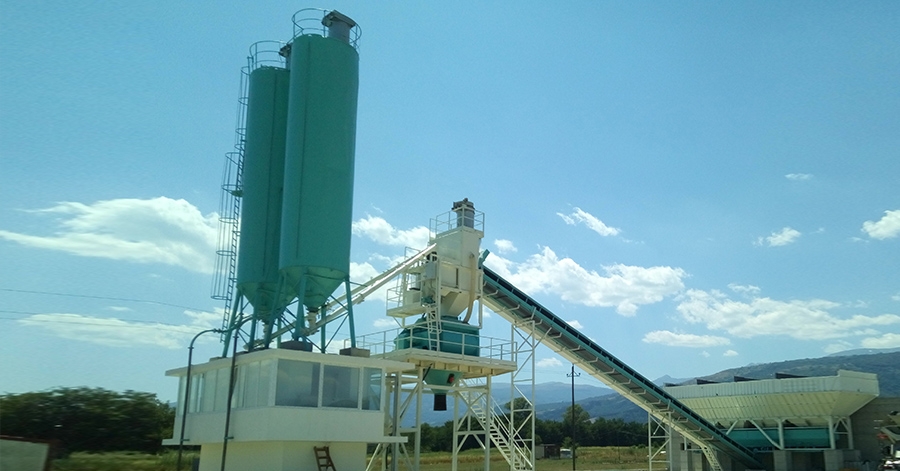

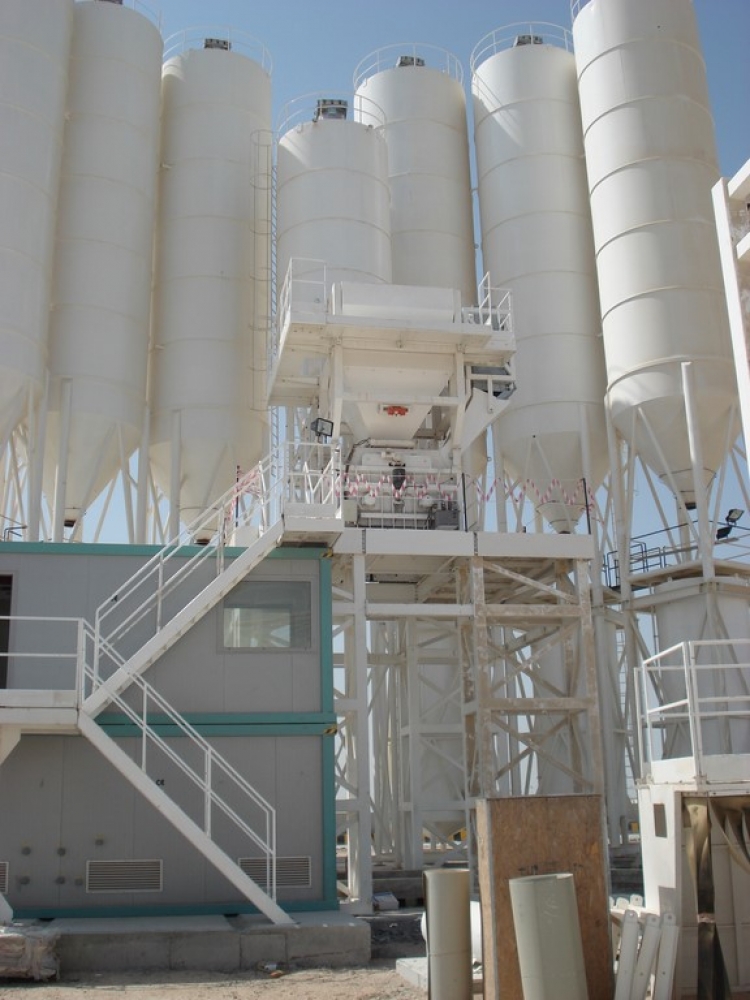

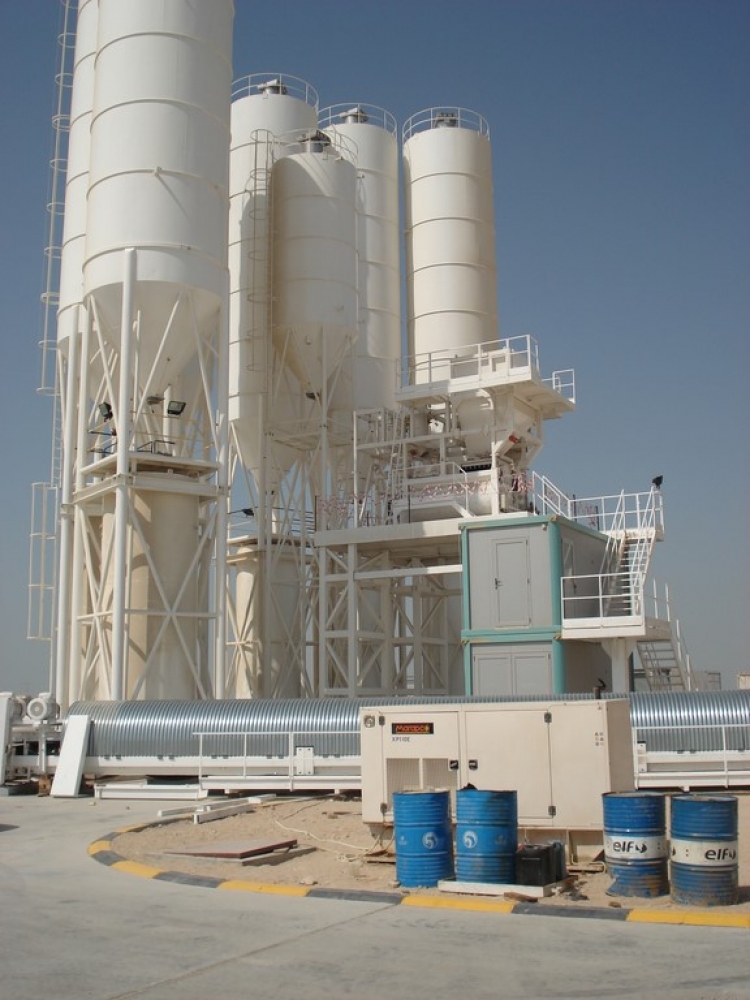

The long experience in steel structures give as the know how to develop and produce high quality range of cement silo. We know very well the parameters that define a good cement silo.

Safety comes first,  so access ladders and roof rails accommodating with all European safety standard. Waterproofing is the next important issue, so each unit is double checked for any possible leak or defect before leaving from our facilities.

Another important factor is the transportation, so we develop many different types of cement silo for managing all kind of need at the local market of Greece as well as overseas. The capacity of silo starts from 43 tones till 170 tones. We can supply monolithic silo, bolted silo or horizontal silo. Its type has specific advantages that fulfill different needs.

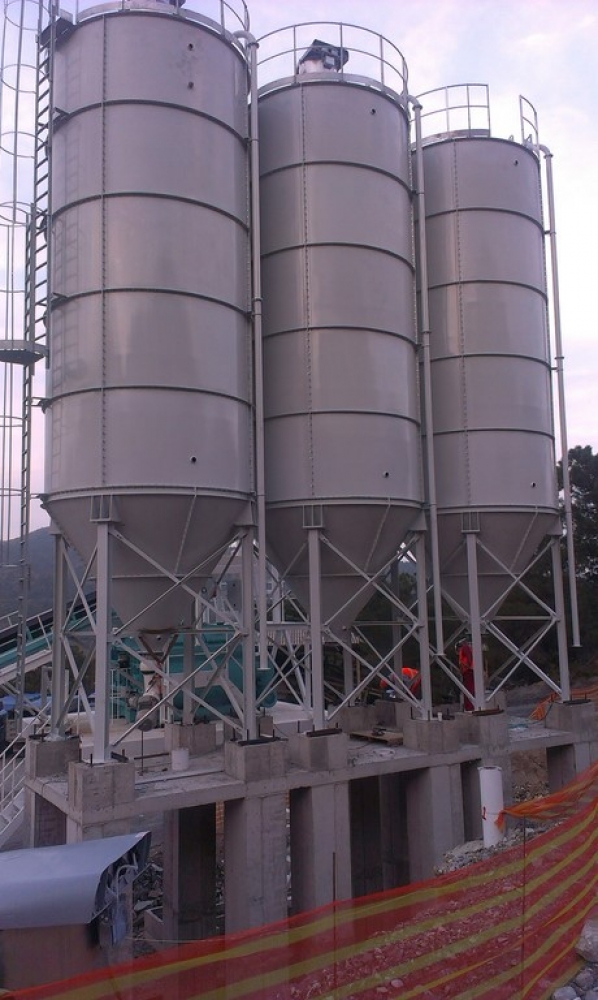

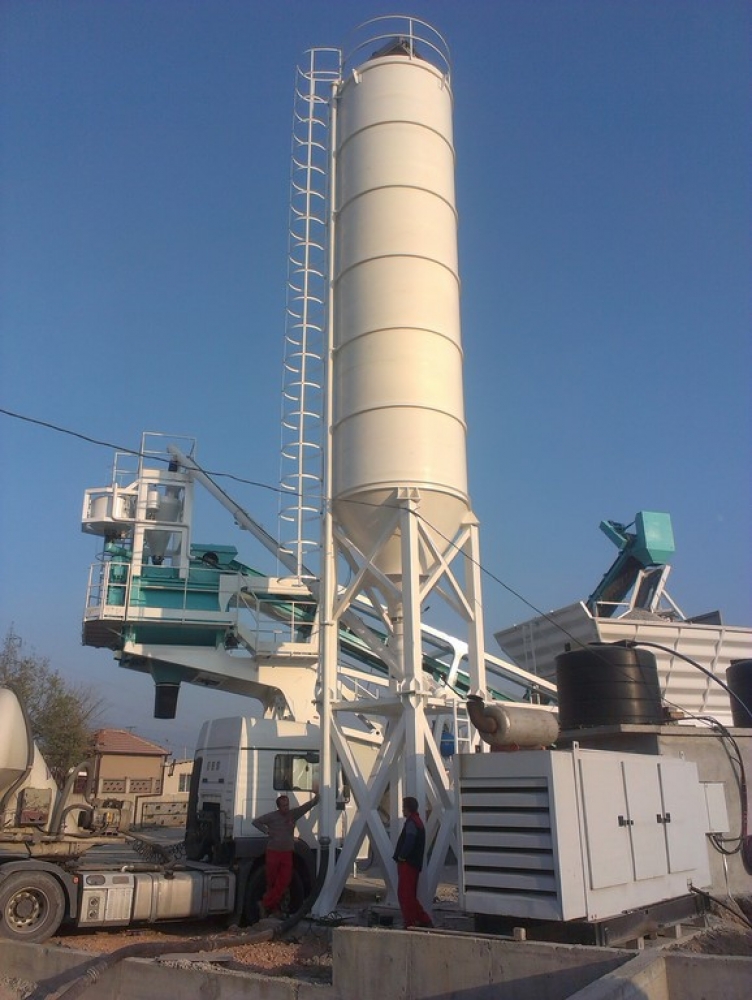

Monolithic silo reduces the installation time. In one working day you can install three to four pieces.

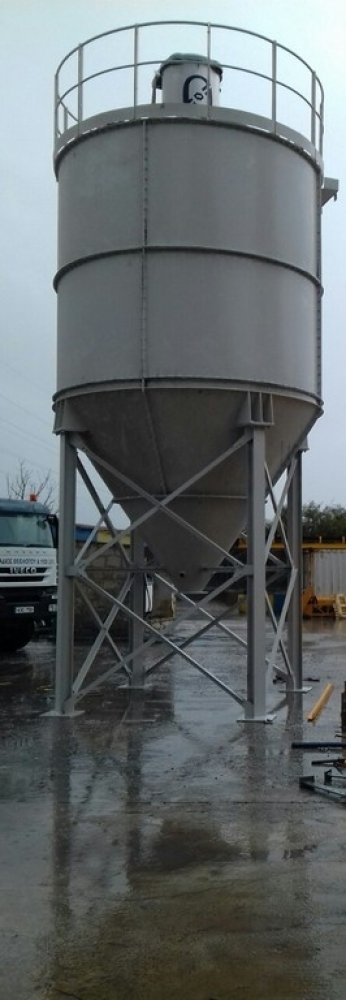

Bolted silo reduces the transportation cost, especially when the storage demand high capacity silo.

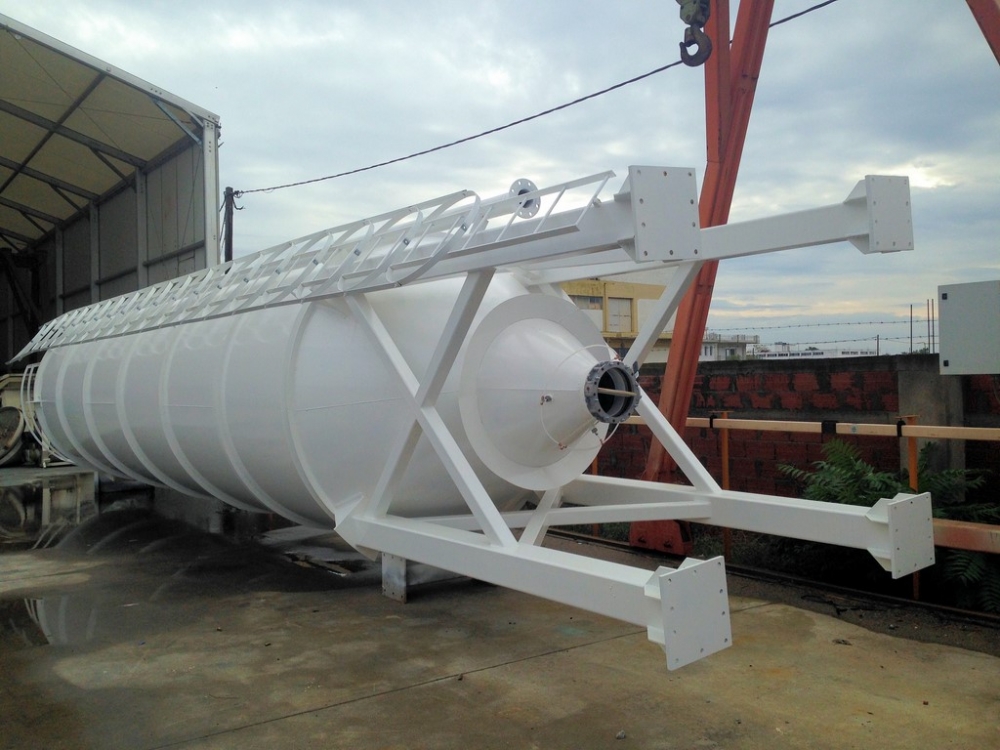

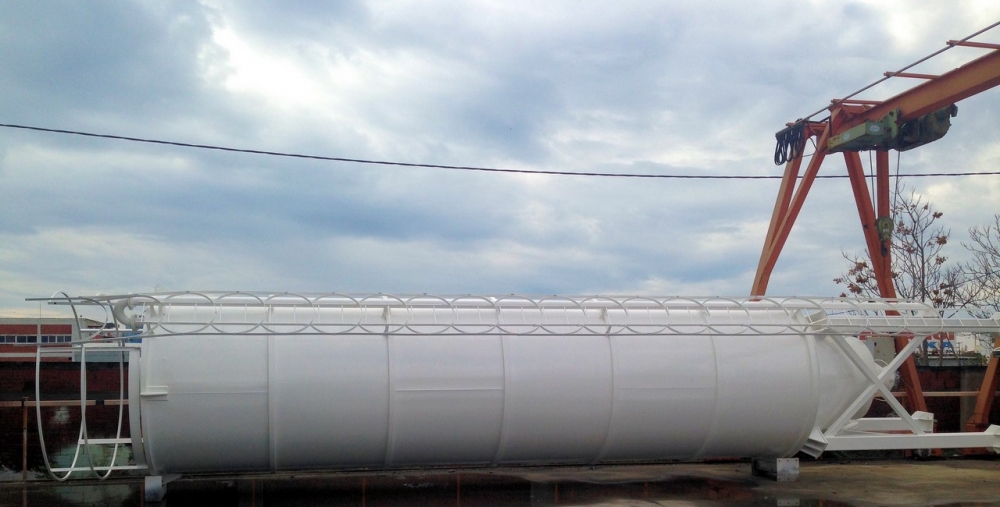

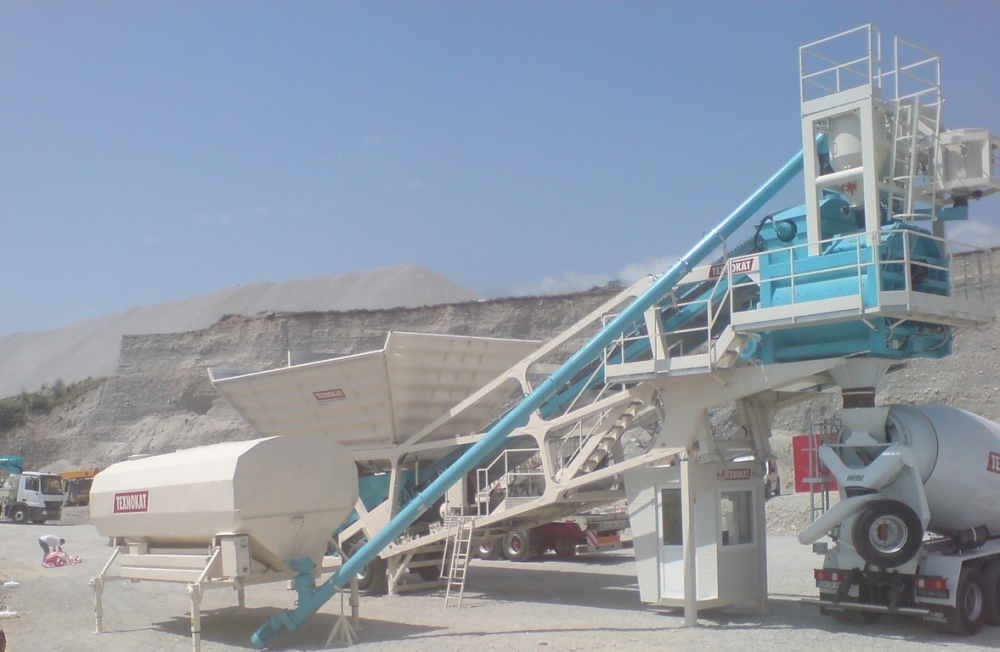

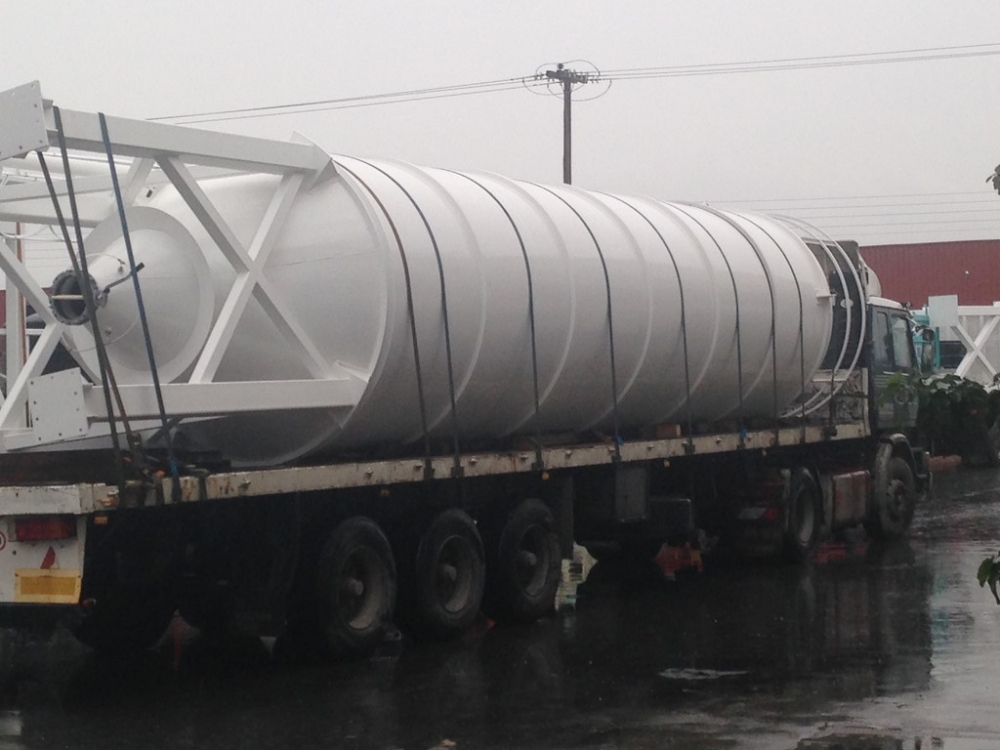

Horizontal silo is perfect for mobile units. The transportation cost is very low, it does not need any kind of lifting machine for loading, unloading and set in operation. Horizontal silo does not require anchoring to the ground. Last but not least, no authorization for installation  is needed as foundations are not required, solid ground is sufficient.



RANGE OF CEMENT SILO

TYPE

DIAMETER

m3

Ton

Height

Length

MONOLITHIC

DIN 2.400 mm

33

43

10.100 mm



MONOLITHIC

DIN 2.400 mm

52

70

13.100 mm



MONOLITHIC

DIN 3.000 mm

68

90

13.500 mm



MONOLITHIC

DIN 3.000 mm

90

120

16.500 mm



BOLTED

DIN 3.600 mm

35

50

7.300 mm



BOLTED

DIN 3.600 mm

50

70

8.800 mm



BOLTED

DIN 3.600 mm

65

90

10.300 mm



BOLTED

DIN 3.600 mm

80

110

11.800 mm



BOLTED

DIN 3.600 mm

95

130

13.350 mm



BOLTED

DIN 3.600 mm

110

150

14.850 mm



BOLTED

DIN 3.600 mm

125

170

16.350 mm



HORIZONTAL

DIN 2.400 mm

26

34



7.200 mm

HORIZONTAL

DIN 2.400 mm

32

42



9.000 mm

HORIZONTAL

DIN 2.400 mm

42

55



12.000 mm
