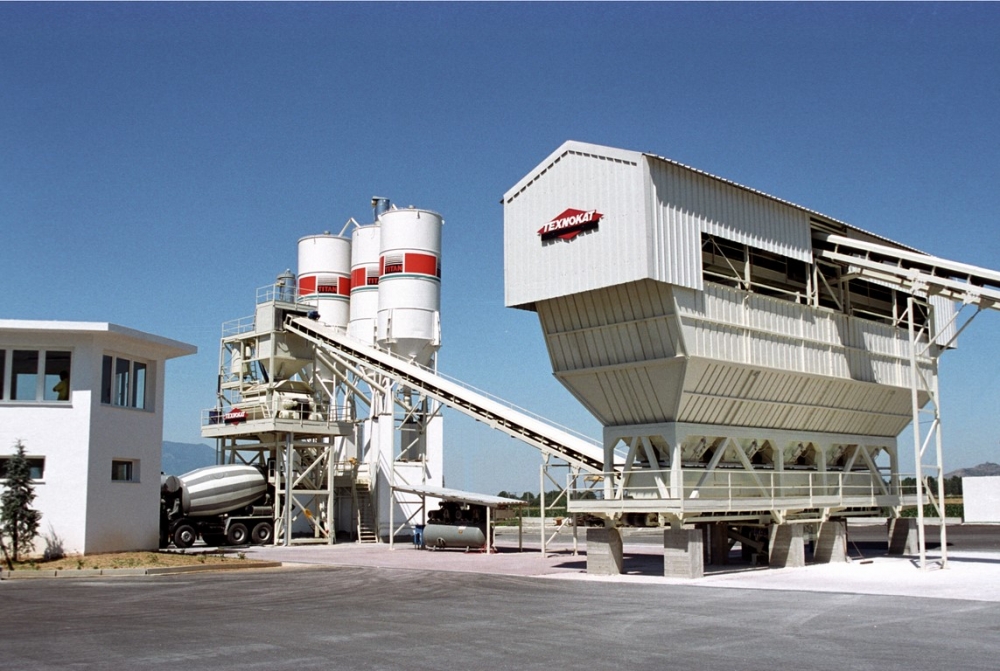

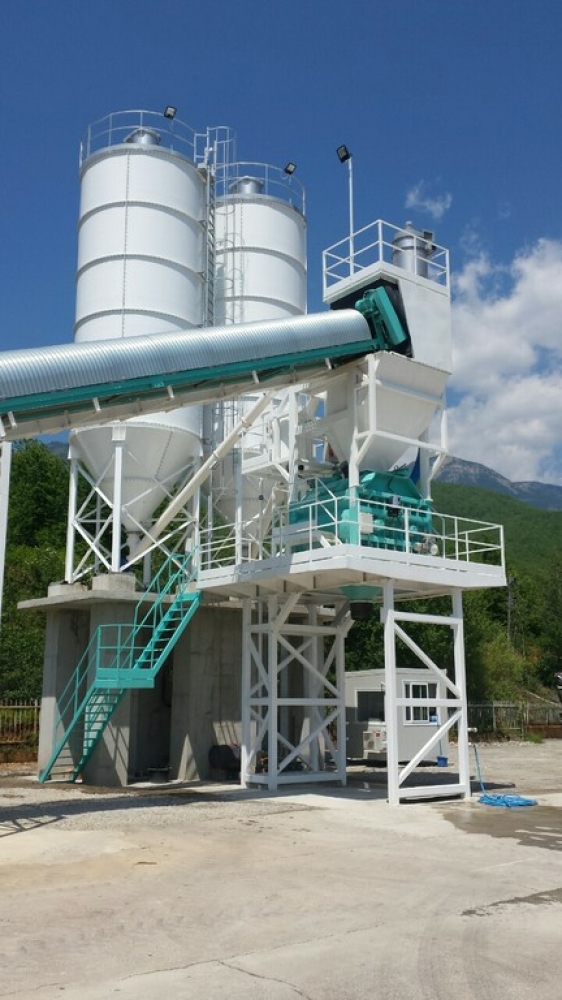

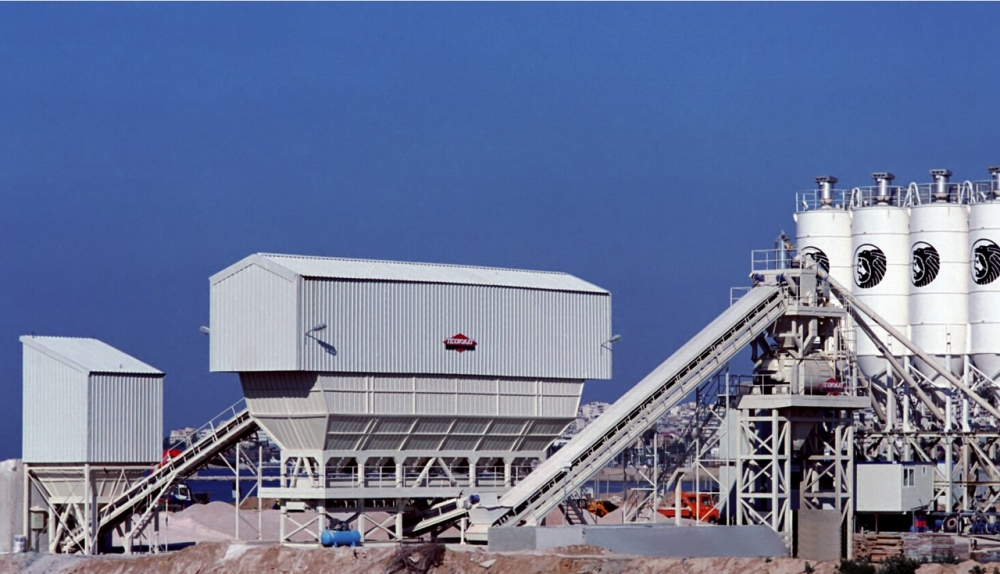

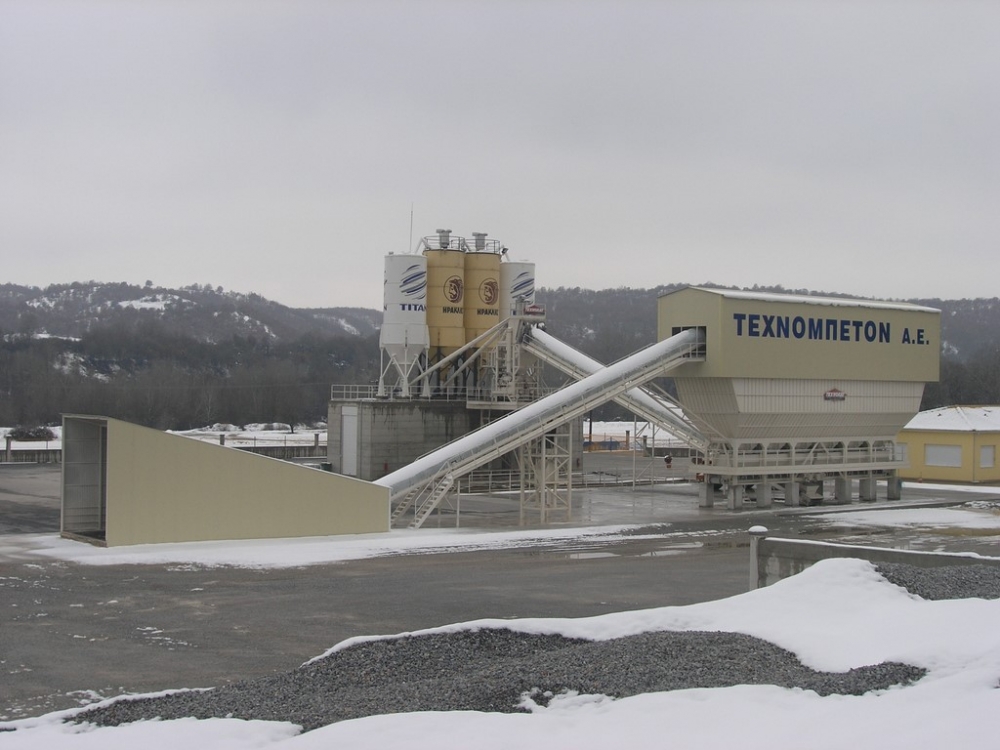

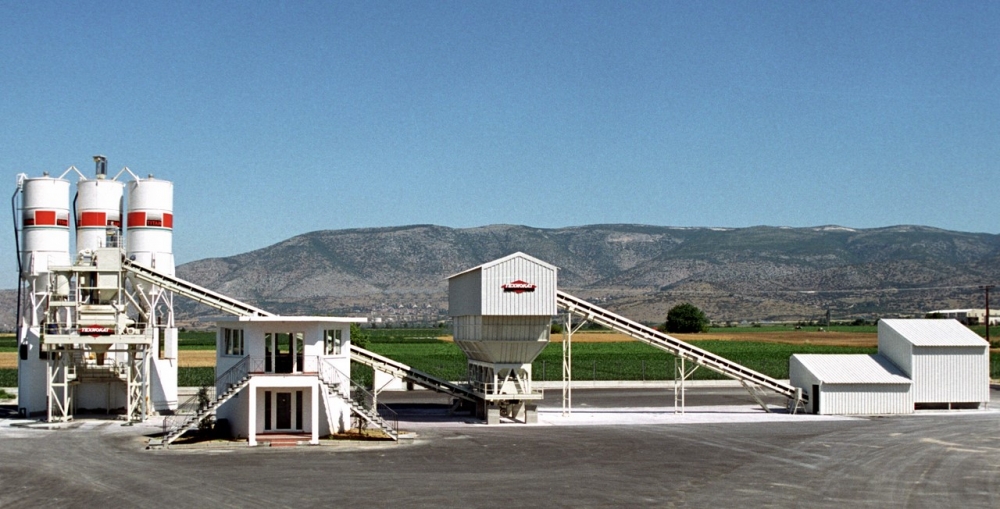

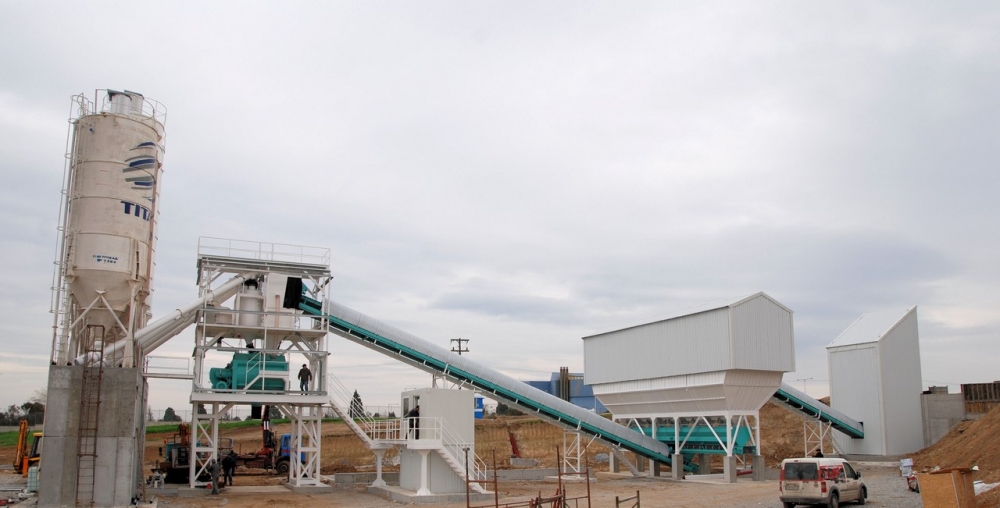

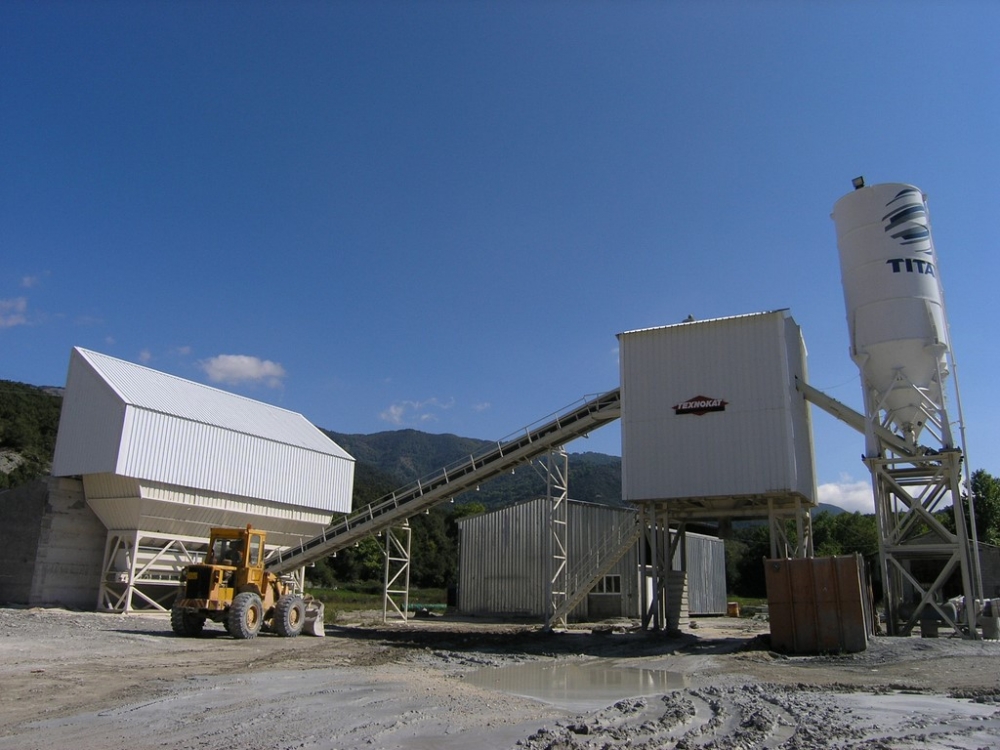

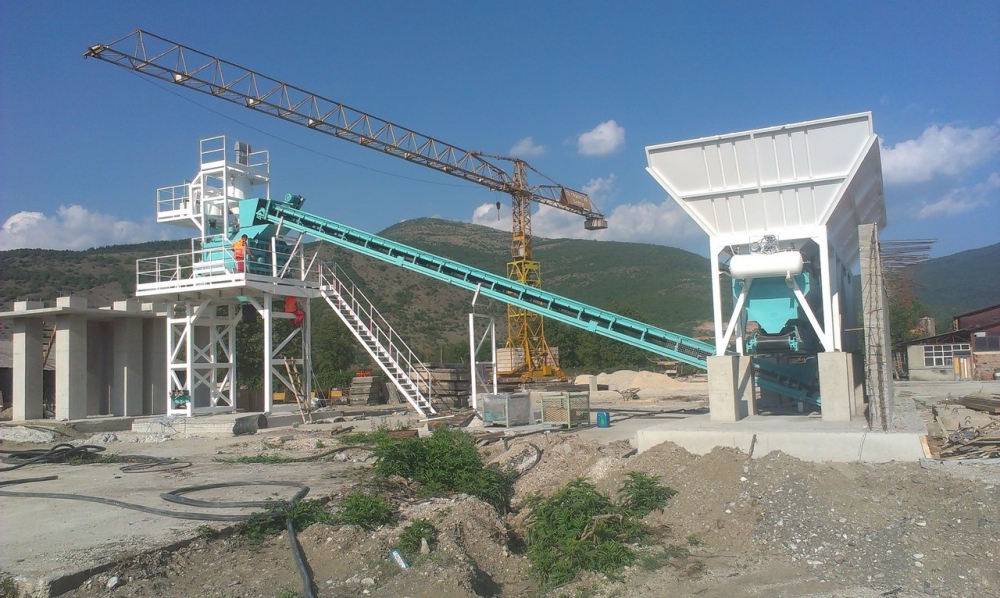

Alexander 80-200



The group's flagship. The machines that made us known internationally. 'ALEXANDROS' concrete batching plants are characterized by ergonomic design, robustness and durability over time.

The long-term design experience of GROUP TEXNOKAT executives combined with the use of the best and most durable materials have as a result machines that never betray the final user. Machines fast. Machines that impress with their volume capacity but also with their ergonomic design.

In our eyes, every machine that comes out of production except for a code has something from us. Something of us that will accompany it all his life.

One batching plant for one life.

One machine modular for every possible need.

A machine with endless design flexibility.



TECHNICAL SPECIFICATION

ALEXANDER 80

ALEXANDER 100

ALEXANDER 120

PRODUCTION CAPACITY

80m3 vibrated concrete

100m3 vibrated concrete

120m3 vibrated concrete

AGGREGATE STORAGE BINS

4 compartments x 30m3 = 120m3

4 compartments x 30m3 = 120m3

5 compartments x 30m3 = 150m3

AGGREGATE WEIGHING SCALE (BELT)

 800 x 11.000mm

2 x 650 x 6.000mm

2 x 800 x 7.500mm

MAIN CONVEYOR BELT

800 x 25.000mm

800 x 25.000mm

1.000 x 25.000mm

TWIN SHAFT MIXER

2m3 SICOMA MAO 3000/2000

2,5m3 SICOMA MAO 3750/2500

3m3 SICOMA  4500/3000

PRE-STORAGE UNIT

YES

YES

YES

TLT SYSTEM

OPTIONAL

OPTIONAL

YES

CEMENT WEIGHING SCALE

1.000 lit –  with 3 load cells

1.200 lit –  with 3 load cells

1.400 lit –  with 3 load cells

CEMENT SCREW CONVEYOR

2 x Φ 219 x 9.000mm

2 x Φ 273 x 9.000mm

2 x Φ 273 x 9.000mm

CEMENT WEIGHING SCALE FILTER

FILTER WAM HOPPER - TOP

FILTER WAM HOPPER - TOP

FILTER WAM HOPPER - TOP

WATER WEIGHING SCALE

500 lit –  with 3 load cells

700 lit –  with 3 load cells

800 lit –  with 3 load cells

ADDITIVE WEIGHING SCALE

1 x 20 lit with 3 load cell PYTHAGORAS

1 x 20 lit with 3 load cell PYTHAGORAS

1 x 30 lit with 3 load cell PYTHAGORAS

WATER PUMP

700Lit/min

700Lit/min

700Lit/min

AIR COMPRESSOR

4Kw, 500Lit

4Kw, 500Lit

TWO HEAD 5,5Kw, 500Lit

ELECTRICAL PANEL

IP 54

IP 54

IP 54

AUTOMATION BETONMIND.NET V2.2

Controller with PC, 22’ screen & laser printer

Controller with PC, 22’ screen & laser printer

Controller with PC, 22’ screen & laser printer

MANUAL FOR USE AND MAINTENANCE

Hardcopy and USB

Hardcopy and USB

Hardcopy and USB

TECHNICAL SPECIFICATION

ALEXANDER 135

ALEXANDER 160

ALEXANDER 200

PRODUCTION CAPACITY

135m3 vibrated concrete

160m3 vibrated concrete

200m3 vibrated concrete

AGGREGATE STORAGE BINS

5 compartments x 30m3 = 150m3

6 compartments x 30m3 = 180m3

6 compartments x 30m3 = 180m3

AGGREGATE WEIGHING SCALE (BELT)

 2 x 800 x 7.500mm

2 x 1.000 x 8.500mm

2 x 1.000 x 8.500mm

MAIN CONVEYOR BELT

1.000 x 25.000mm

1.200 x 28.000mm

1.200 x 28.000mm

TWIN SHAFT MIXER

3,35m3 SICOMA MAO 5000/3350

4m3 SICOMA MAO 6000/4000

5m3 SICOMA  7500/5000

PRE-STORAGE UNIT

YES

YES

YES

TLT SYSTEM

YES

YES

YES

CEMENT WEIGHING SCALE

1.700 lit –  with 3 load cells

2 x 1.000 lit –  with 3 load cells

2 x 1.200 lit –  with 3 load cells

CEMENT SCREW CONVEYOR

3 x Φ 323 x 9.000mm

4 x Φ 323 x 9.000mm

4 x Φ 323 x 9.000mm

CEMENT WEIGHING SCALE FILTER

FILTER WAM HOPPER - TOP

FILTER WAM HOPPER - TOP

FILTER WAM HOPPER - TOP

WATER WEIGHING SCALE

1.000 lit –  with 3 load cells

1.200 lit –  with 3 load cells

1.400 lit –  with 3 load cells

ADDITIVE WEIGHING SCALE

2 x 30 lit with 3 load cell PYTHAGORAS

2 x 30 lit with 3 load cell PYTHAGORAS

2 x 30 lit with 3 load cell PYTHAGORAS

WATER PUMP

900Lit/min

1.000Lit/min

1.200Lit/min

AIR COMPRESSOR

TWO HEAD 5,5Kw, 500Lit

TWO HEAD 5,5Kw, 500Lit

TWO HEAD 5,5Kw, 500Lit

ELECTRICAL PANEL

IP 54

IP 54

IP 54

AUTOMATION BETONMIND.NET V2.2

Controller with PC, 22’ screen & laser printer

Controller with PC, 22’ screen & laser printer

Controller with PC, 22’ screen & laser printer

MANUAL FOR USE AND MAINTENANCE

Hardcopy and USB

Hardcopy and USB

Hardcopy and USB



OPTIONAL EQUIPMENT ALEXANDER

  • 7TH / 8TH Aggregate apartment
  • Aggregate apartment vertical upgrade
  • Double aggregate discharge door
  • Peripheral balcony for aggregate hopper
  • Metal base for aggregate hopper
  • Maintenance balcony for conveyor belt
  • Galvanized metal cover for conveyor belt
  • Additional chemical additive weighing systems
  • Micro silica weighing scale with screw conveyor
  • Fly ash weighing scale with screw conveyor
  • Ice flake weighing scale
  • Additional water weighing system
  • Microwave humidity sensor
  • Cement silo monolithic or bolted
  • 5th / 6th cement screw conveyor
  • Steel base for stationary cement silo with maintenance platform
  • Filter for cement silo
  • Safety valve for cement silo
  • Cement silo level indicators
  • Safe loading system for cement silo
  • Aggregate pre-loading system with remote control (static or vertical)
  • Filter for mixer
  • Filter for pre-storage unit
  • Moisture probe for mixer
  • High pressure washes out
  • Water tank
  • Power generator
